Запчасти Case IH 4130 (07-7) - DRIVE TRAIN, DRIVE AXLE - FRONT & REAR (04) - Drive Train

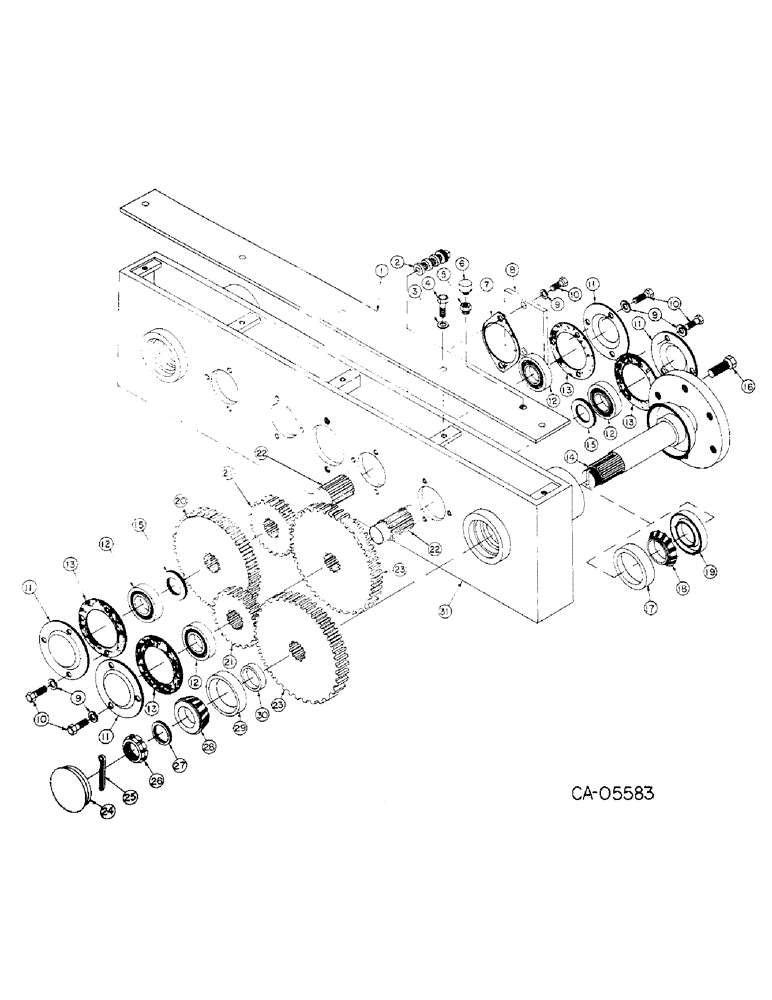

Схема запчастей Case IH 4130 - (07-7) - DRIVE TRAIN, DRIVE AXLE - FRONT & REAR (04) - Drive Train
23
13
8
2
18
21
26
12
9
12
9
23
31
12
10
7
25
13
1
30
13
10
22
11
12
17
24
22
27
29
19
3
14
13
10
28
20
4
11
11
9
15
21
5
11
6
15
16

Артикул

Название

Примечание

Количество

73302C91

HOUSING ASSY, gear - complete

2шт.

1

73303C1

BAR, gear case, cover

2шт.

2

111561H

PLUG

2шт.

3

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

10шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

10шт.

5

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

BUSHING, 1/2 - 3/8 reducing pipe

2шт.

6

72217C1

BREATHER

2шт.

7

73305C1

GASKET

input bore

2шт.

8

73306C1

BAR, input bore

2шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

52шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

52шт.

11

72072C1

COVER

cluster shaft

16шт.

12

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, cluster shaft

16шт.

13

72071C1

GASKET

cluster shaft cover

16шт.

14

73307C1

AXLE

4шт.

15

73308C1

THRUST WASHER

- 3/16, spacer (Or as required)

1шт.

15

73309C1

THRUST WASHER

- 1/16, spacer - (Or as required)

1шт.

16

364451R1

BOLT,9/16" - 18 x 1 7/32"

lug

24шт.

17

ST987

BEARING CUP

CUP, outer axle bearing

4шт.

18

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE, outer axle bearing

4шт.

19

73425C1

SEAL

axle

4шт.

20

73310C1

GEAR, primary cluster

4шт.

21

73311C1

GEAR, cluster pinion

8шт.

22

73312C1

SHAFT, cluster

8шт.

23

73313C1

GEAR, axle

8шт.

24

560950R1

HUB CAP

CAP, axle

4шт.

25

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

4шт.

26

73314C1

NUT

axle

4шт.

27

607147R1

WASHER

4шт.

28

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, inner axle brg

4шт.

29

663558R1

BEARING CUP

CUP, inner axle brg

4шт.

30

73316C1

WASHER, axle, spacer

4шт.

31

73317C1

HOUSING, wheel drive

2шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8 x 1 type 5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

Выбрано товаров: 35
