Запчасти Case IH 4125 (04-2) - BRAKES, PARK BRAKE, LOADER (5.1) - BRAKES

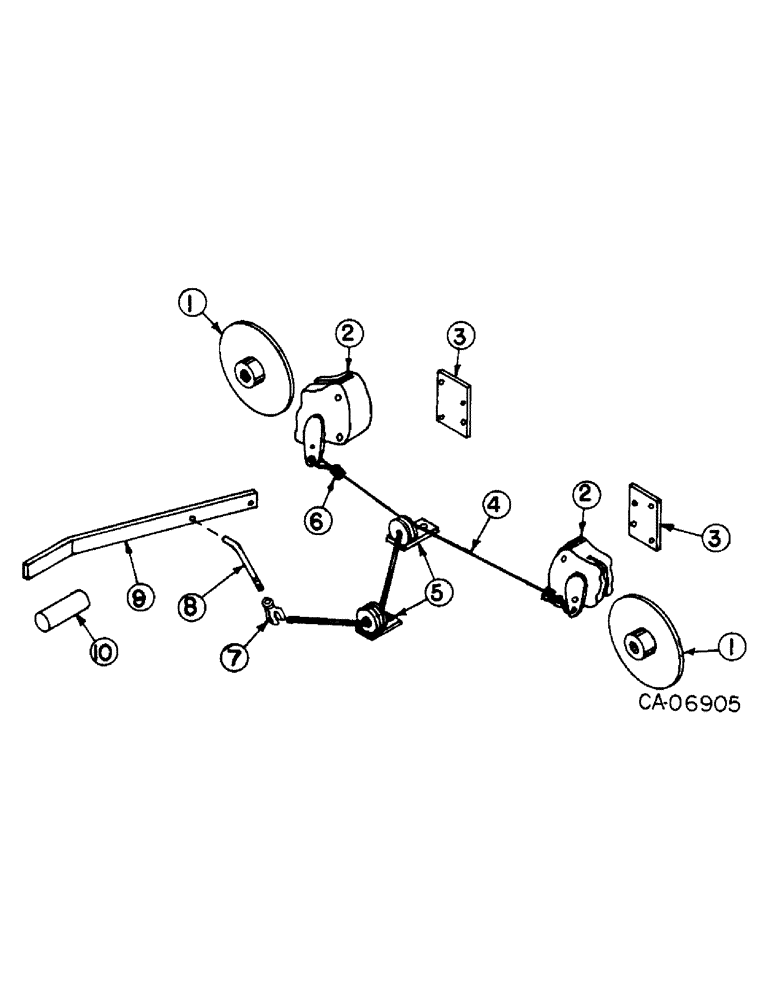

Схема запчастей Case IH 4125 - (04-2) - BRAKES, PARK BRAKE, LOADER (5.1) - BRAKES

Артикул

Название

Примечание

Количество

1

77482C1

DISC

brake

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

617057R1

PIN,1/4" x 1", Coiled

2шт.

2

73775C1

CALIPER ASSY, brake

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

77483C1

PLATE, mount

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

4

78110C1

CABLE, brake

1шт.

5

75143C1

GUIDE, cable

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

75723C1

CLAMP, 1/8 cable

2шт.

7

73785C1

CLEVIS, rod end

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, 5/16 clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

8

78111C1

ROD, actuator

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

9

78112C1

SUPPORT, handle

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

1шт.

10

72210C1

GRIP

handle

1шт.

Выбрано товаров: 25
