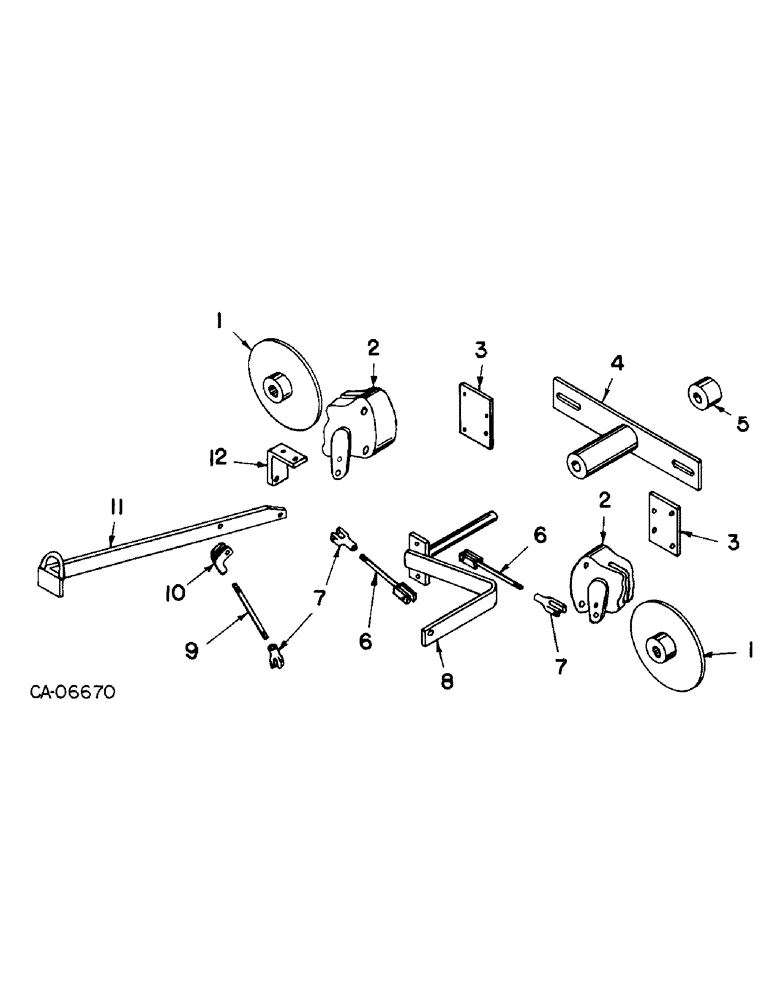

Запчасти Case IH 4125 (04-1) - BRAKES, PARK BRAKE, LOADER (5.1) - BRAKES

1

77482C1

DISC

brake

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

617057R1

PIN,1/4" x 1", Coiled

2шт.

2

73775C1

CALIPER ASSY, brake

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

77483C1

PLATE, mount

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

4шт.

4

77484C1

PIVOT, rear

1шт.

5

77485C1

COLLAR, lock

1шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

6

77486C1

ROD, control

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

7

116320

YOKE

CLEVIS, 1/4-28 rod end

3шт.

20791R1

CLEVIS PIN,1/4" x .906"

PIN, 1/4 x .906 clevis

3шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

103363

PIN, SPLIT (COTTER)

PIN, 1/16 x 1 pln cot

3шт.

8

77487C1

PIVOT

1шт.

9

77488C1

ROD, input

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

10

77489C1

YOKE

1шт.

20791R1

CLEVIS PIN,1/4" x .906"

PIN, 1/4 x .906 clevis

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

103363

PIN, SPLIT (COTTER)

PIN, 1/16 x 1 pln cot

1шт.

11

77490C1

HANDLE

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

12

77491C1

PIVOT, handle

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
