Запчасти Case IH 4125 (10-3) - HYDRAULICS, AUX CONTROL VALVE & FRT MOUNT ATT (07) - HYDRAULICS

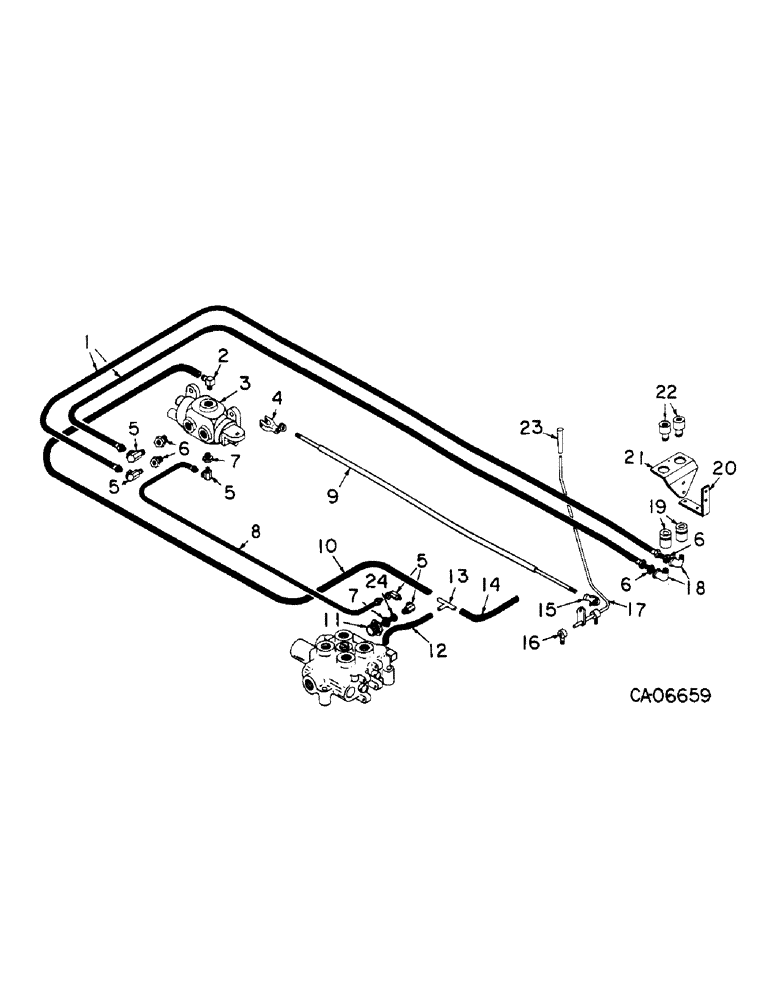

Схема запчастей Case IH 4125 - (10-3) - HYDRAULICS, AUX CONTROL VALVE & FRT MOUNT ATT (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

72088C1

HOSE ASSY, Serial Range: valve-coupler

2шт.

120875

CLAMP, conduit hose

4шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

2

73496C1

ELBOW, beaded

1шт.

3

72180C91

VALVE ASSY, auxiliary control, refer to aux valve for service parts

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

4

77453C1

YOKE, linkage

1шт.

180046

SPRING

1/4 x 2-1/4 type 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

5

77426C1

ELBOW

5шт.

6

175778H1

ADAPTER

1/2-3/8 reducing pipe

4шт.

7

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

2шт.

8

77428C1

HOSE

ASSY, MCV to aux valve

1шт.

9

77456C1

ROD, control

1шт.

120368

NUT,5/16"-24, G5

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE, aux valve to tee, use 38 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

11

73343C91

KIT, power beyond conversion sleeve

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE, tee to MCV, use 38 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

120875

CLAMP, conduit hose

1шт.

77457C1

PAD, foam

1шт.

13

73499C1

TEE, beaded

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, tee to reservoir, use 6 inches from bulk roll marked 526602R1

1шт.

28085R1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP, #8 hose

2шт.

15

72212C1

END ASSY.

END, rod

1шт.

120368

NUT,5/16"-24, G5

1шт.

16

76466C1

PIVOT

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

17

77458C1

HANDLE

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

1шт.

18

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2-90 deg street

2шт.

19

72299C1

COUPLING, female

2шт.

75155C1

SET, plug

1шт.

20

77459C1

BRACKET, mount

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

77460C1

BRACKET, coupler

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

22

72305C1

COUPLING, male

2шт.

75154C1

CAP, dust

2шт.

23

77461C1

GRIP, handle

1шт.

24

175778H1

ADAPTER

1/2-3/8 reducing pipe

1шт.

Выбрано товаров: 46
