Запчасти Case IH 4125 (08-5) - ELECTRICAL, STARTING MOTOR (06) - ELECTRICAL

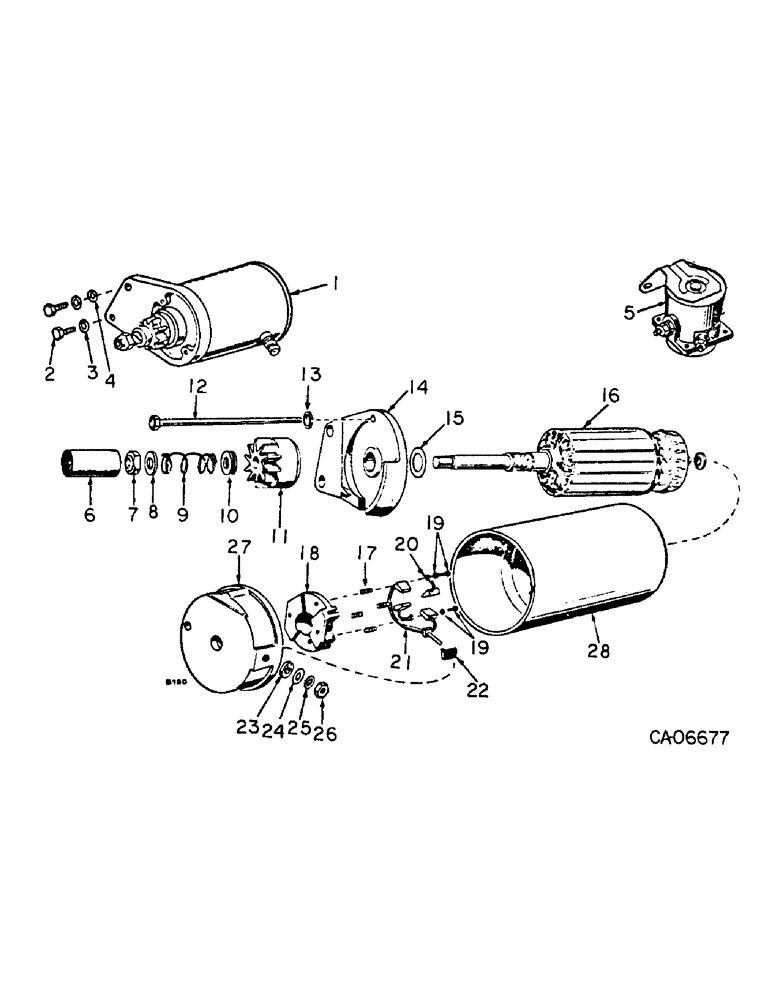

Схема запчастей Case IH 4125 - (08-5) - ELECTRICAL, STARTING MOTOR (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

77115C91

MOTOR ASSY, starter

1шт.

2

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

5

77116C1

SWITCH

solenoid

1шт.

6

77117C1

COVER, dust

1шт.

7

77118C1

KIT

NUT, stop

1шт.

8

77119C1

KIT

WASHER, stop nut

1шт.

9

77120C1

KIT

SPRING, anti-drift

1шт.

10

77121C1

SPACER, dust cover

1шт.

11

77122C1

DRIVE

GEAR ASSY, drive

1шт.

12

77123C1

BOLT

through

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

77124C1

CAP

drive end

1шт.

15

77125C1

WASHER

armature thrust

1шт.

16

77126C1

ARMATURE

1шт.

17

NSS

NOT SOLD SEPARAT

Order 77127C1 or 77128C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

Part of Starter Repair kit, P/N 77128C1

1шт.

18

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

19

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

20

NSS

NOT SOLD SEPARAT

Order 77127C1 or 77128C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

Part of Starter Repair kit, P/N 77128C1

1шт.

21

NSS

NOT SOLD SEPARAT

Order 77127C1 or 77128C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

Part of Starter Repair kit, P/N 77128C1

1шт.

22

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

23

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

24

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

25

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

26

NSS

NOT SOLD SEPARAT

Order 77127C1 kit

1шт.

Part of Commutator Cap kit, P/N 77127C1

1шт.

27

77127C1

CAP

KIT, commutator cap, Consists of ref. nos. 17 thru 26

1шт.

28

NSS

NOT SOLD SEPARAT

Order 77115C91 starter assy

1шт.

77128C1

KIT

starter repair, Consists of ref. nos. 17, 20 & 21

1шт.

Выбрано товаров: 42
