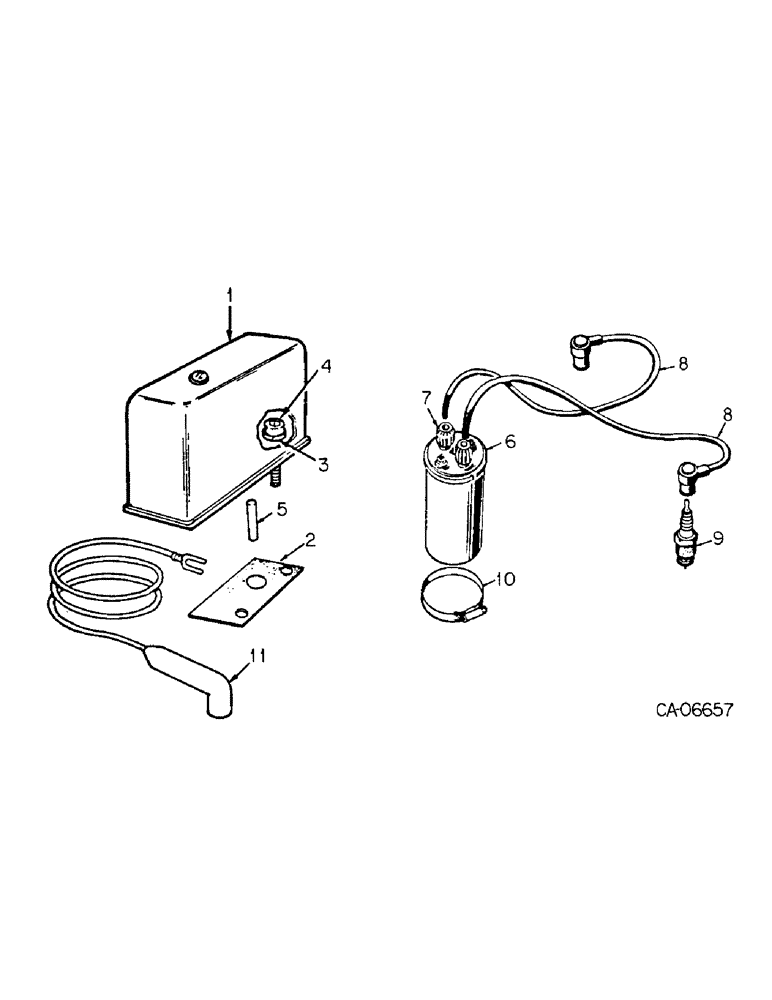

Запчасти Case IH 4125 (08-3) - ELECTRICAL, IGNITION (06) - ELECTRICAL

1

74226C91

BOX

ASSY, breaker

1шт.

2

74233C1

GASKET

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

1/4 x 3/4 h/shd cap

2шт.

5

74234C1

PLUNGER

breaker point assy

1шт.

6

74216C1

COIL

ignition

1шт.

7

74225C1

CAP

ignition coil

2шт.

8

75356C1

CABLE

spark plug, LH

1шт.

8

75357C1

CABLE

spark plug, RH

1шт.

9

77083C1

PLUG

spark

2шт.

10

74212C1

COLLAR CLAMP

CLAMP, coil

1шт.

11

74224C1

CABLE

ASSY, Serial Range: block-coil

1шт.
