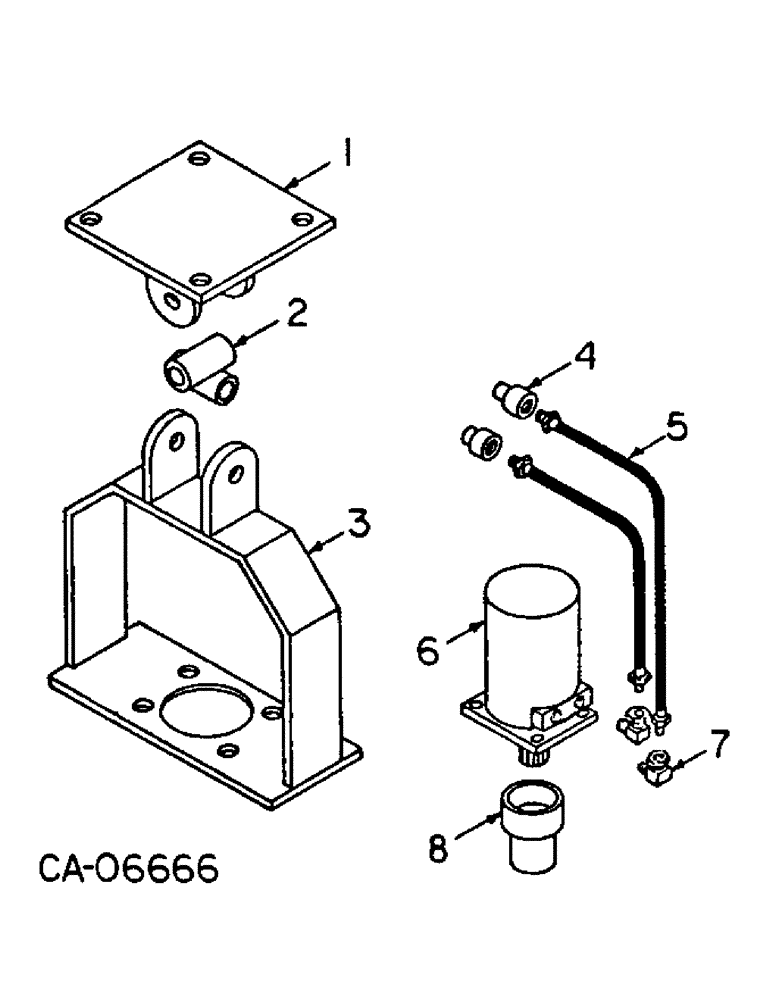

Запчасти Case IH 4125 (17-10) - MOUNTED EQUIPMENT, POST HOLE AUGER ATT (05) - SUPERSTRUCTURE

1

77475C1

PLATE, mount

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

77476C1

PIVOT

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5

2шт.

280954

NUT,3/4"-10, G5

4шт.

3

77477C1

BRACKET, motor

1шт.

4

72305C1

COUPLING, male

2шт.

75154C1

CAP, dust

2шт.

5

77479C1

HOSE ASSY

2шт.

6

72319C1

MOTOR

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

77480C1

ELBOW

2шт.

8

77478C1

ADAPTER, drive

1шт.

72326C1

BLADE, 9 in. replacement cutting, auger bit attachment

1шт.

72327C1

BLADE, 12 in. replacement cutting, auger bit attachment

1шт.

72328C1

BLADE, 18 in. replacement cutting, auger bit attachment

1шт.

72330C1

POINT, replacement, auger bit attachment

1шт.
