Запчасти Case IH 4125 (17-09) - MOUNTED EQUIPMENT, GRAPPLE FORK ATT (05) - SUPERSTRUCTURE

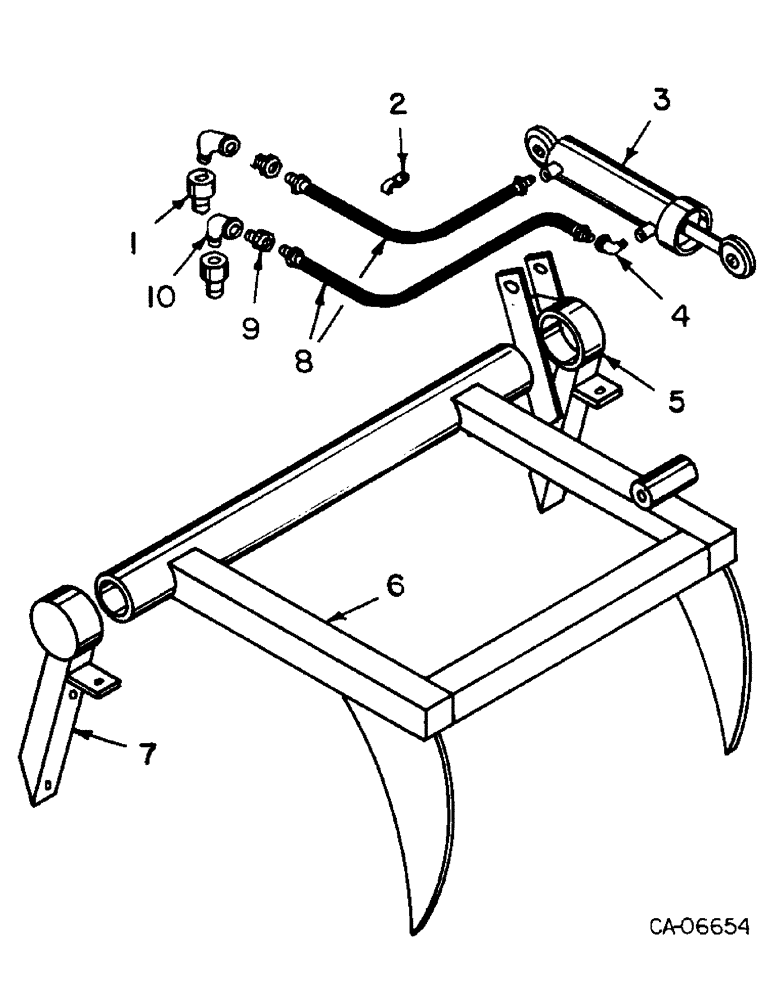

Схема запчастей Case IH 4125 - (17-09) - MOUNTED EQUIPMENT, GRAPPLE FORK ATT (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

72305C1

COUPLING, male

2шт.

75154C1

CAP, dust

2шт.

2

120875

CLAMP, conduit hose

4шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

3

72183C91

CYLINDER ASSY, grapple

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

75137C91

SEAL KIT

PACKAGE, o-ring & seal service

1шт.

72191C1

PISTON

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type 5

1шт.

72192C1

TUBE, cylinder

1шт.

72193C1

SHAFT, cylinder

1шт.

562025R1

CIRCLIP

RING, retaining

1шт.

72928C1

END

packing, head

1шт.

72929C1

THRUST WASHER

thrust

1шт.

4

120063

BOLT,Hex, M8 x 80, 8.8

3/8 - 90 deg street

1шт.

5

77494C1

PIVOT ASSY.

PIVOT, grapple, LH

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

6

72457C1

FORK, grapple

1шт.

7

77496C1

PIVOT, grapple, RH

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

8

72091C1

HYDRAULIC HOSE,0.38" ID x 94.00", SAE 100R2 Type A

HOSE ASSY, grapple

2шт.

9

175778H1

ADAPTER

1/2-3/8 reducing pipe

2шт.

10

108686

ELBOW,90 Degree, 1/2" NPT Street

1/2 - 90 deg street

2шт.

Выбрано товаров: 36
