Запчасти Case IH 4125 (17-01) - MOUNTED EQUIPMENT, LOADER BOOM (05) - SUPERSTRUCTURE

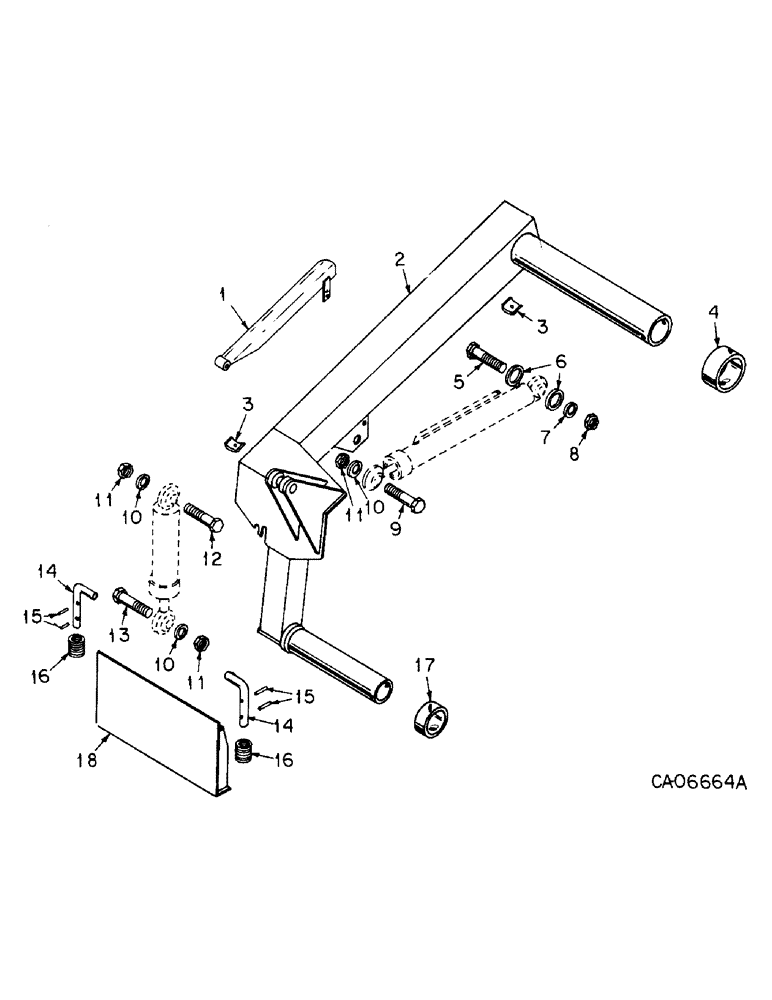

Схема запчастей Case IH 4125 - (17-01) - MOUNTED EQUIPMENT, LOADER BOOM (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

73367C91

PACKAGE, cyl. lockout brace

1шт.

72533C1

DECAL

PRODUCT GRAPHIC, lockout brace caution

1шт.

27874R1

HEADED PIN,3/8" x 3"

PIN, 3/8 x 3 hd type 1

1шт.

586591R1

COTTER PIN

PIN, 1/8 Q.A. cotter

1шт.

2

78736C1

BOOM ASSY, replaces 77433C1

1шт.

3

369758R1

CLAMP

tubing

2шт.

77434C1

PAD, foam

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1/2 type 5

2шт.

4

77435C1

COLLAR, boom

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

25894R1

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

1 x 3-1/2 phc type 8

1шт.

6

77436C1

SPACER

2шт.

7

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

8

25531R1

NUT,1"-8, G8

1 phc type 8

1шт.

9

24892R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

1шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

11

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

3шт.

12

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

13

24894R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

1шт.

14

73210C1

ROD

bucket, pin

2шт.

15

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

4шт.

16

73359C1

SPRING

bucket pin

2шт.

17

77437C1

COLLAR, easy tach

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

18

77438C1

SUPPORT ASSY, easy tach, plate

1шт.

16982R91

FITTING

1/4-28 special taper drive thd

2шт.

78737C91

KIT, lift arm assy, Serial Range: -199

1шт.

Выбрано товаров: 31
