Запчасти Case IH 4125 (13-1) - SUPERSTRUCTURE (05) - SUPERSTRUCTURE

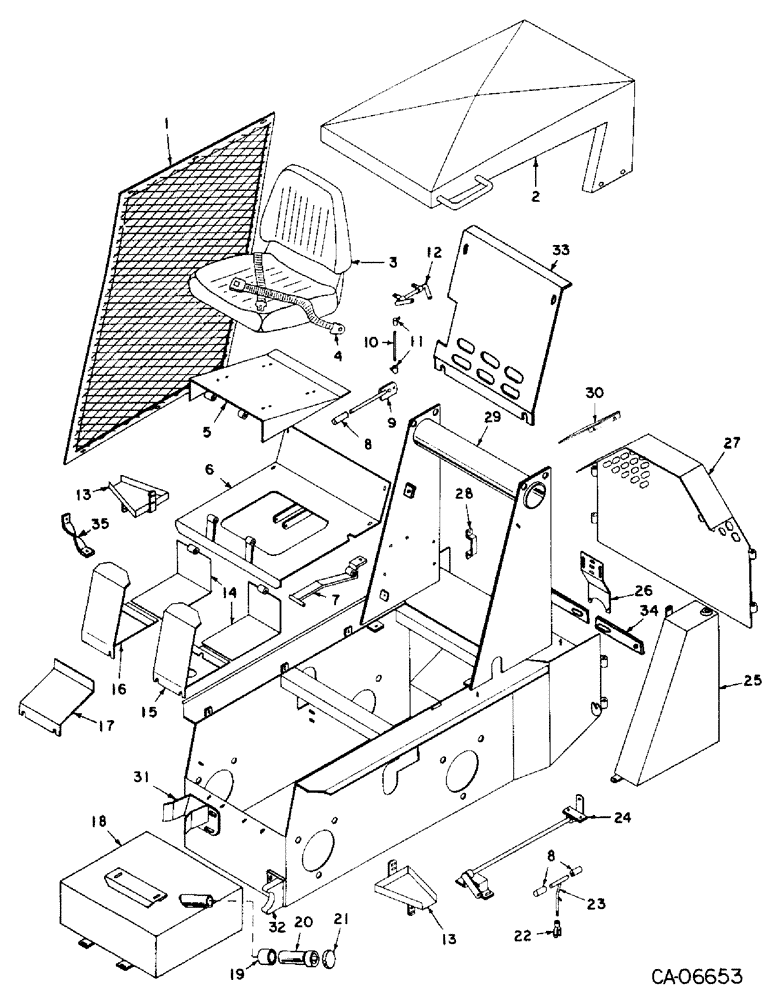

Схема запчастей Case IH 4125 - (13-1) - SUPERSTRUCTURE (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

77330C1

SCREEN, side

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

6шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

2

77331C1

CAB, ROPS, canopy

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

77332C91

SEAT ASSY

1шт.

77992C1

CUSHION

seat, back, replaces 77333C1

1шт.

77993C1

CUSHION

seat, bottom, replaces 77334C1

1шт.

77335C1

FRAME, seat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

4

72179C1

BELT

SAFETY BELT

1шт.

5

77336C1

PLATE, seat mount

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

78054C1

STRIP, wear pad

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

2шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, no. 6 ext-int tooth lock

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

6

77337C1

PLATE, seat

1шт.

24201R1

SELF-TAP SCREW,1/4" - 14 x 1"

SCREW, 1/4-14 x 1 h/hd tap

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

7

77338C1

BAR, seat lock

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

8

72125C1

GRIP, throttle

3шт.

9

72006C1

LEVER, throttle

1шт.

72007C1

PAD, friction

1шт.

78242C1

BELLEVILLE WASHER

Belleville

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

10

77374C1

ROD, throttle

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

11

72266C1

END

rod

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

12

77340C1

PIVOT, throttle

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

73856C1

SUPPORT, filter mount

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

14

77341C1

PLATE, foot, RH

1шт.

14

77745C1

PLATE, foot, LH

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

15

77342C1

GUARD, foot, LH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

16

77343C1

GUARD, foot, RH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

17

77344C1

SHIELD, battery

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

77345C1

TANK, fuel

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19

73331C1

HOSE, connector

1шт.

995220R1

CLAMP

hose

2шт.

20

77346C1

TUBE, extension

1шт.

21

72187C1

CAP

fuel

1шт.

22

144243

CLEVIS

3/8-24 adj rod end

1шт.

23

77347C1

HANDLE, belt tightener

1шт.

24

77348C1

PIVOT, belt tightener

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

25

77349C1

TANK, hyd oil, reservoir

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

26

77350C1

BRACKET, pump, mount

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 type 5

2шт.

27

77351C1

GATE, tail

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

28

72117C1

SUPPORT, hose, clamp

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

29

77352C1

FRAME, main

1шт.

30

77353C1

PLATE, tailgate

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

31

77354C1

SUPPORT, lift arm, guide, Serial Range: -199

1шт.

31

78735C1

SUPPORT, lift arm, guide, Start Serial: 200

1шт.

120396

WASHER

.531 x 1.062 x .074

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

32

77355C1

SUPPORT, lift arm, Serial Range: -199

1шт.

32

78734C1

SUPPORT, lift arm, Start Serial: 200

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

33

77356C1

SHIELD, engine

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

34

77357C1

BAR, spreader

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

35

77358C1

GUARD, foot

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

Выбрано товаров: 120
