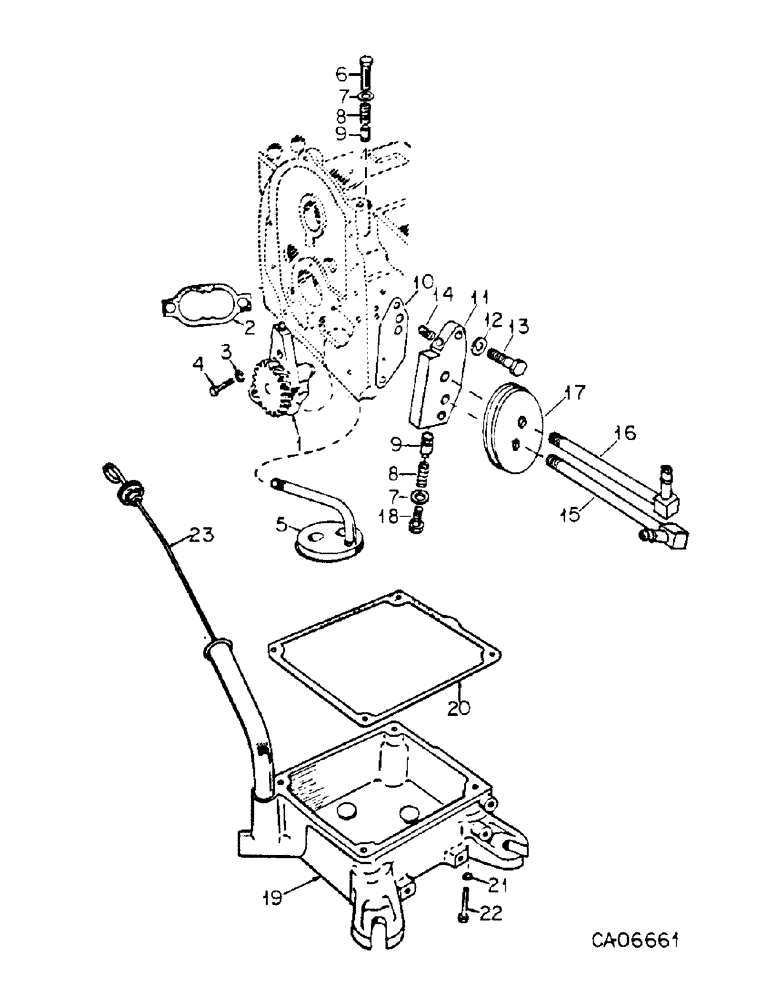

Запчасти Case IH 4125 (12-08) - POWER, OIL SYSTEM (04) - Drive Train

1

74153C1

ENGINE OIL PUMP

PUMP, oil

1шт.

2

74158C1

GASKET

KIT, oil pump gasket

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

25483R1

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1/4 x 1 phc type 8

2шт.

5

77096C1

CUP, oil pump intake

1шт.

6

NLS

NO LONGER SERVICED

3/8-NF x 1 type 5

1шт.

7

74087C1

WASHER

WASHER, by-pass valve

1шт.

8

74155C1

SPRING

by-pass valve

1шт.

9

74156C1

HYDRAULIC VALVE

VALVE, by-pass

1шт.

10

74163C1

GASKET

oil filter adapter mtg

1шт.

11

77097C1

ADAPTER

1шт.

12

75319C1

WASHER, oil filter adapter mtg

2шт.

13

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 phc type 8

2шт.

14

77098C1

PLUG

pipe

1шт.

15

77099C1

TUBE ASSY, lower oil

1шт.

16

77100C1

TUBE ASSY, upper oil

1шт.

17

77101C1

GROMMET

1шт.

18

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

1шт.

19

77102C1

BASE, oil

1шт.

20

74091C1

GASKET

1шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

4шт.

23

77220C1

GAUGE, oil filler, dipstick

1шт.
