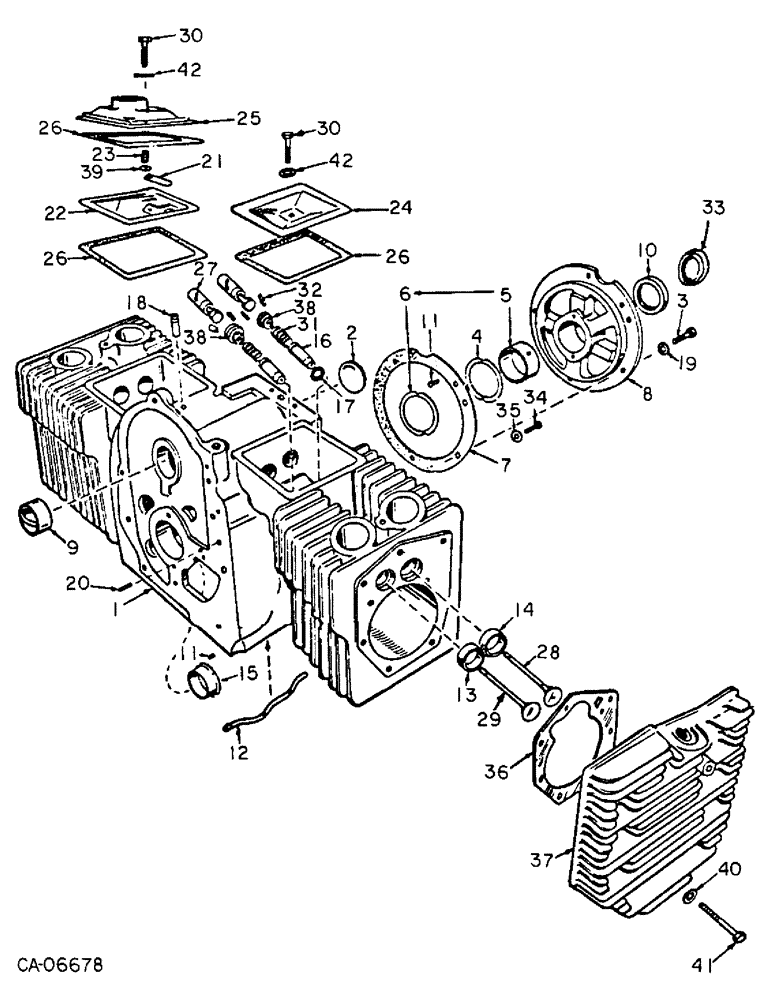

Запчасти Case IH 4125 (12-01) - POWER, CYLINDER BLOCK (04) - Drive Train

1

77024C91

BLOCK ASSY, cylinder, includes ref nos. 2 thru 20

1шт.

2

74033C1

PLUG

1шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

5шт.

4

74082C1

SHIM

SET, shim, use one or as required

1шт.

5

74039C1

CRANKSHAFT BEARING

crankshaft rear, std, includes ref no. 6

1шт.

5

74040C1

CRANKSHAFT BEARING

crankshaft rear, .002 U/S

1шт.

5

74041C1

BEARING

crankshaft rear, .010 U/S

1шт.

6

74044C1

WASHER

crankshaft brg thrust

2шт.

7

74045C1

GASKET

brg plate

1шт.

8

74046C1

LARGE PLATE

PLATE, brg rear

1шт.

9

74047C1

CAMSHAFT BEARING

camshaft

2шт.

10

77025C1

SEAL, crankshaft rear

1шт.

11

74049C1

PIN

bearing stop

4шт.

12

77026C1

TUBE

cyl block oil

1шт.

13

77027C1

INSERT

exhaust valve seat, std

2шт.

13

77028C1

INSERT, exhaust valve seat, .02 O/S

2шт.

13

77029C1

INSERT, exhaust valve seat, .005 O/S

2шт.

13

77030C1

INSERT

exhaust valve seat, .010 O/S

2шт.

14

77031C1

SEAT

INSERT, intake valve seat, std.

2шт.

14

77032C1

INSERT, intake valve seat, .002 O/S

2шт.

14

77033C1

INSERT, intake valve seat, .005 O/S

2шт.

14

77034C1

INSERT, intake valve seat, .010 O/S

2шт.

15

74077C1

CRANKSHAFT BEARING

crankshaft frt, std.

1шт.

15

74078C1

CRANKSHAFT BEARING

crankshaft frt, .002 U/S

1шт.

15

74079C1

CRANKSHAFT BEARING

crankshaft frt, .010 U/S

1шт.

16

77035C1

GUIDE, valve

4шт.

17

74074C1

GASKET

intake valve guide

2шт.

18

77037C1

PIPE,0.23" ID, 0.29" OD, 15" Length

TUBE VACUUM PORT

1шт.

19

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

20

74151C1

PIN

gear cover alignment

2шт.

21

77038C1

VALVE, PRESSURE RELI

FLAP, breather valve

1шт.

22

77039C1

BAFFLE

breather valve

1шт.

23

77040C1

SPRING

breather valve

1шт.

24

77041C1

GASKET

COVER, valve

1шт.

25

77042C1

COVER

valve

1шт.

26

77043C1

GASKET

valve cover

3шт.

27

74068C1

TAPPET

valve, std

4шт.

27

77044C1

TAPPET, valve, .001 O/S

4шт.

27

77045C1

TAPPET

valve, .002 O/S

4шт.

27

75305C1

TAPPET, valve, .005 O/S

4шт.

28

77046C1

VALVE

intake

2шт.

29

77047C1

VALVE, exhaust

2шт.

30

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4 type 5

2шт.

31

74066C1

SPRING

valve

4шт.

32

74067C1

LOCK

valve spring

8шт.

33

77048C1

SEAL, dust

1шт.

34

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

2шт.

35

74087C1

WASHER

WASHER, copper

2шт.

36

77049C1

CYLINDER HEAD GASKET

cylinder head

2шт.

37

77050C1

HEAD, cylinder, RH

1шт.

37

77051C1

HEAD, cylinder, LH

1шт.

38

74070C1

CAP

ROTATOR, valve

4шт.

39

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

40

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

18шт.

41

77052C1

BOLT

5/16 x 1-5/8 cyl. head

12шт.

41

77053C1

BOLT

5/8 x 2 cyl head

6шт.

42

77054C1

WASHER

copper

2шт.

77129C91

KIT, carbon removal gasket

1шт.

77130C91

KIT

engine gasket

1шт.

77131C91

KIT, overhaul

1шт.

77221C91

ENGINE ASSY, short block

1шт.
