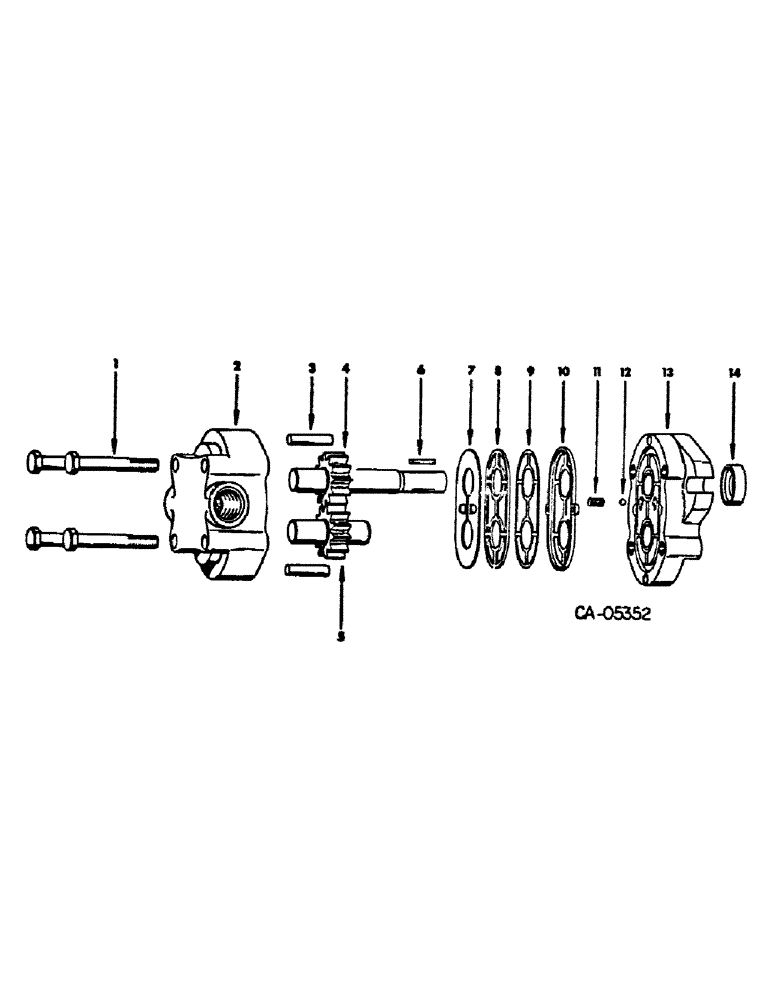

Запчасти Case IH 4120 (10-4) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

72383C91

PUMP ASSY, hydraulic

1шт.

1

827392C1

SEAL KIT

KIT, gasket & seal service, Includes ref. nos. 7 thru 12 & 14

1шт.

2

NSS

NOT SOLD SEPARAT

SCREW, Order pump assy

4шт.

3

NSS

NOT SOLD SEPARAT

HOUSING ASSY, Order pump assy

1шт.

4

NSS

NOT SOLD SEPARAT

PIN, dowel, Order pump assy

2шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSY, drive, Order pump assy

1шт.

6

72632C1

KEY

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM, Order seal kit

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET, back-up, Order seal kit

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, protector, Order seal kit

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, diaphragm, Order seal kit

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING, Order seal kit

1шт.

12

17007R1

BALL

steel

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE ASSY, front, Order pump assy

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL, shaft, Order seal kit

1шт.
