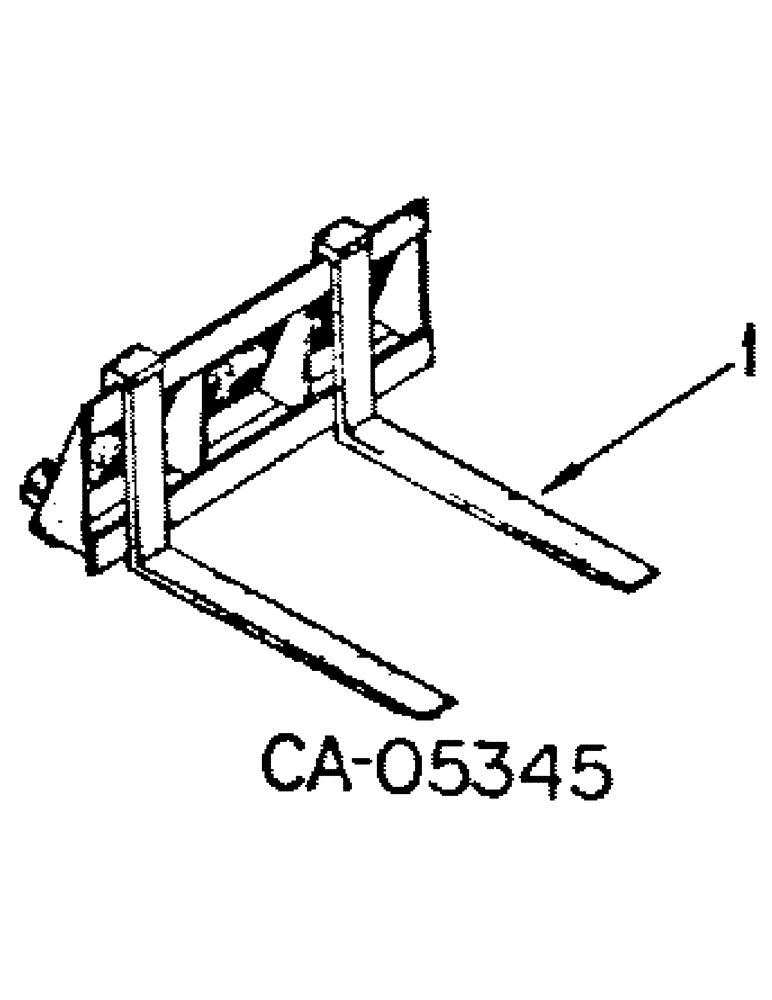

Запчасти Case IH 4120 (17-4) - MOUNTED EQUIPMENT, PALLET FORK ATTACHMENTS (05) - SUPERSTRUCTURE

1

72453C1

FORK, 24 inch

2шт.

1

72454C1

FORK, 30 inch

2шт.

1

72455C1

FORK, 36 inch

2шт.

72457C1

FORK ASSY, grapple fork attachment

1шт.

72458C1

BRACKET, mounting, LH, grapple fork attachment

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 zn hex-hd cap, grapple fork attachment

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap, grapple fork attachment

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Grapple fork attachment 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

Grapple fork attachment 3/8"-16, G5

3шт.

16982R91

FITTING

1/4-28 special taper drive thd self tapping lub, grapple fork attachment

1шт.

72459C1

BRACKET, mounting, RH, grapple fork attachment

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap, grapple fork attachment

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap, grapple fork attachment

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Grapple fork attachment 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

Grapple fork attachment 3/8"-16, G5

3шт.

16982R91

FITTING

1/4-28 special taper drive thd self tapping lub, grapple fork attachment

1шт.

72183C91

CYLINDER ASSY, hydraulic, grapple fork attachment

1шт.

72394C91

PACKAGE

o-ring & seal service, grapple fork attachment

1шт.

72307C1

SEAL

piston, grapple fork attachment

1шт.

481767R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1.549 x 1.755 x .103, grapple fork attachment

1шт.

343920R1

RING

O-RING, 1.609 x 1.887 x .139, grapple fork attachment

1шт.

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Grapple Fork Attachment

1шт.

72191C1

PISTON

grapple fork attachment

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 nylon insert, grapple fork attachment

1шт.

72192C1

TUBE, cylinder, grapple fork attachment

1шт.

72193C1

SHAFT, cylinder, grapple fork attachment

1шт.

562025R1

CIRCLIP

RING, retaining, grapple fork attachment

1шт.

72310C1

WIPER SEAL

WIPER, rod, grapple fork attachment

1шт.

72311C1

SEAL

rod, grapple fork attachment

1шт.

72927C91

KIT

packing head, grapple fork attachment

1шт.

25020R1

O-RING,Rect, 1.75" ID x 2" OD, Cl 5

WASHER, 1.734 x 2.002 x .134 backup, grapple fork attachment

1шт.

16982R91

FITTING

1/4-28 special taper drive thd self tapping lub, grapple fork attachment

1шт.

293350R91

UNION

ELBOW, grapple fork attachment

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Grapple fork attachment Hex, 3/4"-10 x 3", G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap, grapple fork attachment

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", Grapple fork attachment

2шт.

280954

NUT,3/4"-10, G5

grapple fork attachment 3/4"-10, G5

2шт.

72186C1

HOSE ASSY, cyl to coupler, grapple fork attachment

1шт.

72460C1

HOSE ASSY, cyl to coupler, grapple fork attachment

1шт.

175778H1

ADAPTER

1/2 - 3/8 reducing pipe, grapple fork attachment

2шт.

72305C1

COUPLING, male, grapple fork attachment

2шт.
