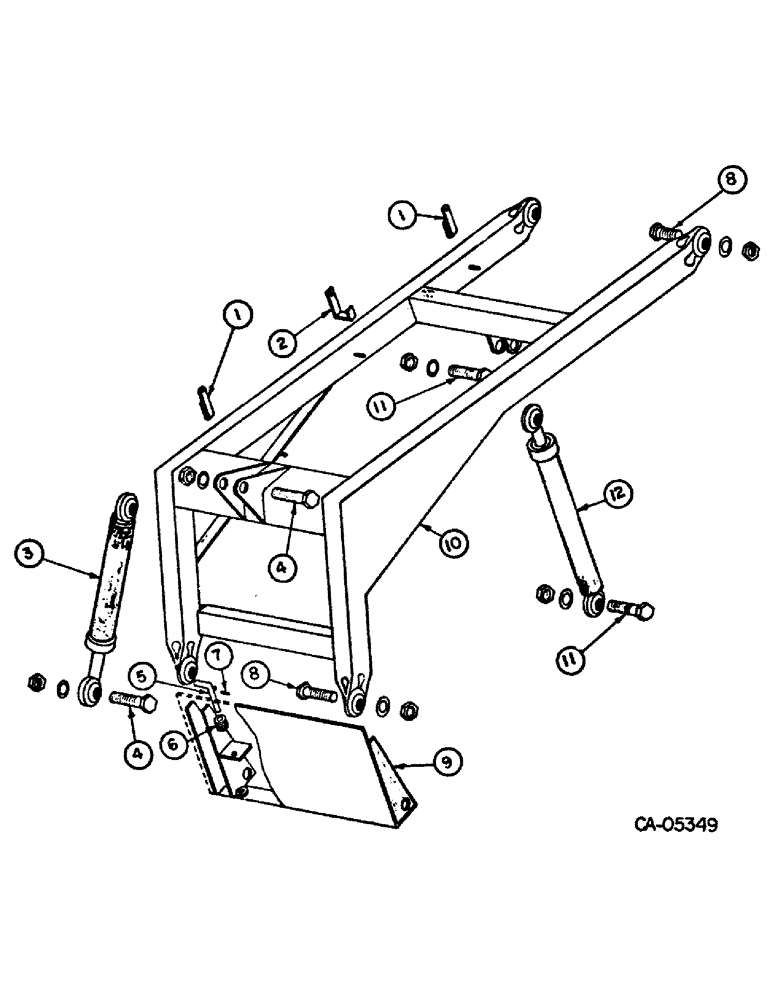

Запчасти Case IH 4120 (17-1) - MOUNTED EQUIPMENT, LOADER BOOM (05) - SUPERSTRUCTURE

1

72375C1

CLAMP, hose

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

2

72376C1

SUPPORT, hose clamp, bracket

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

NSS

NOT SOLD SEPARAT

CYLINDER, tilt, Refer to hydraulic and hydrostatic system

1шт.

4

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

25529R1

NUT,3/4"-10, G8

3/4-10 phc hex, type 8

2шт.

5

72378C1

ROD, bracket, pin, Serial number 160 and below

2шт.

5

73210C1

ROD

bucket, pin, Serial number 161 & above

2шт.

6

72122C1

SPRING, bucket pin

2шт.

7

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

8

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

3/4-10 phc hex, type 8

4шт.

9

73209C1

SUPPORT ASSY, easy tach, Replaces 72379C1, On orders for 72379C1 furnish 73209C1 and (2) 73210C1 pins

1шт.

10

72380C1

BOOM ASSY, loader

1шт.

11

24892R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

25529R1

NUT,3/4"-10, G8

3/4-10 phc hex, type 8

2шт.

12

NSS

NOT SOLD SEPARAT

CYLINDER, lift, Refer to hydraulic and hydrostatic system

1шт.

72052C91

PACKAGE, cylinder lockout bracket

1шт.

72533C1

DECAL

PRODUCT GRAPHIC, cylinder lockout caution

1шт.

72227C1

PIN

hitch

1шт.
