(15-1) - WHEELS AND TRACTION, WHEEL AND TIRE ATTACHMENTS

Запчасти Case IH 4120 (15-1) - WHEELS AND TRACTION, WHEEL AND TIRE ATTACHMENTS (04) - Drive Train

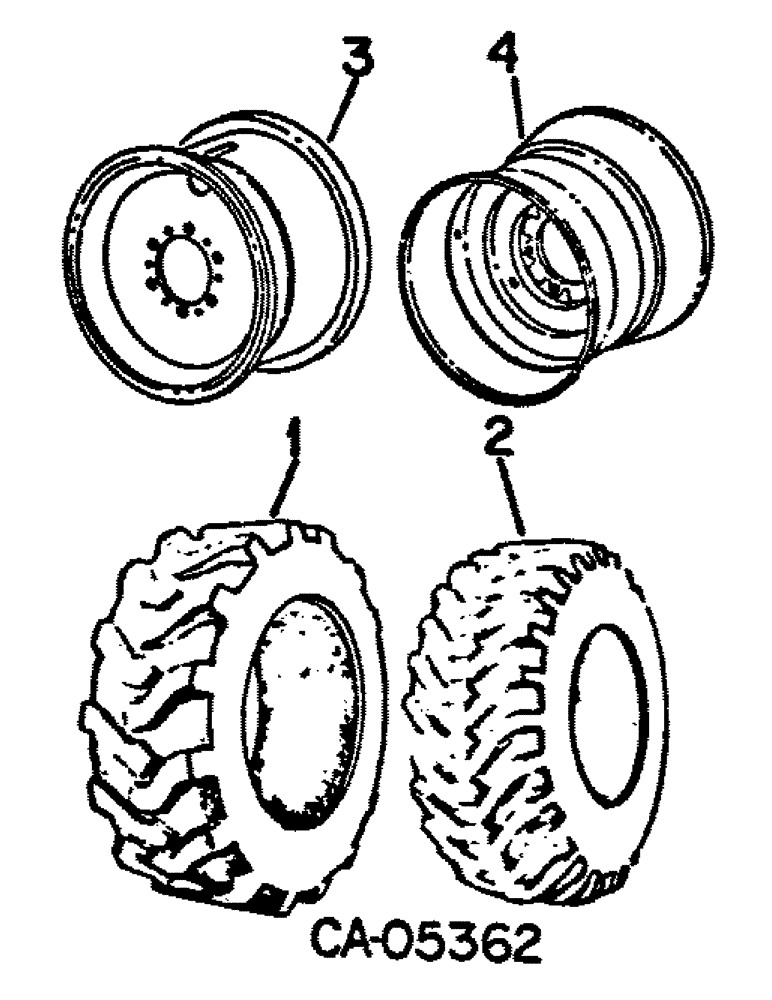

Схема запчастей Case IH 4120 - (15-1) - WHEELS AND TRACTION, WHEEL AND TIRE ATTACHMENTS (04) - Drive Train
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

72605C1

TIRE, 5.70 x 12 2 ply

4шт.

2

72606C1

TIRE, 8.50 x 12 4 ply

4шт.

3

72607C1

WHEEL, 12.00-5

4шт.

4

72608C1

WHEEL

12.00-7

4шт.

4

77702C1

WHEEL

12.00-8.5

4шт.

72609C1

STEM, tire

4шт.
