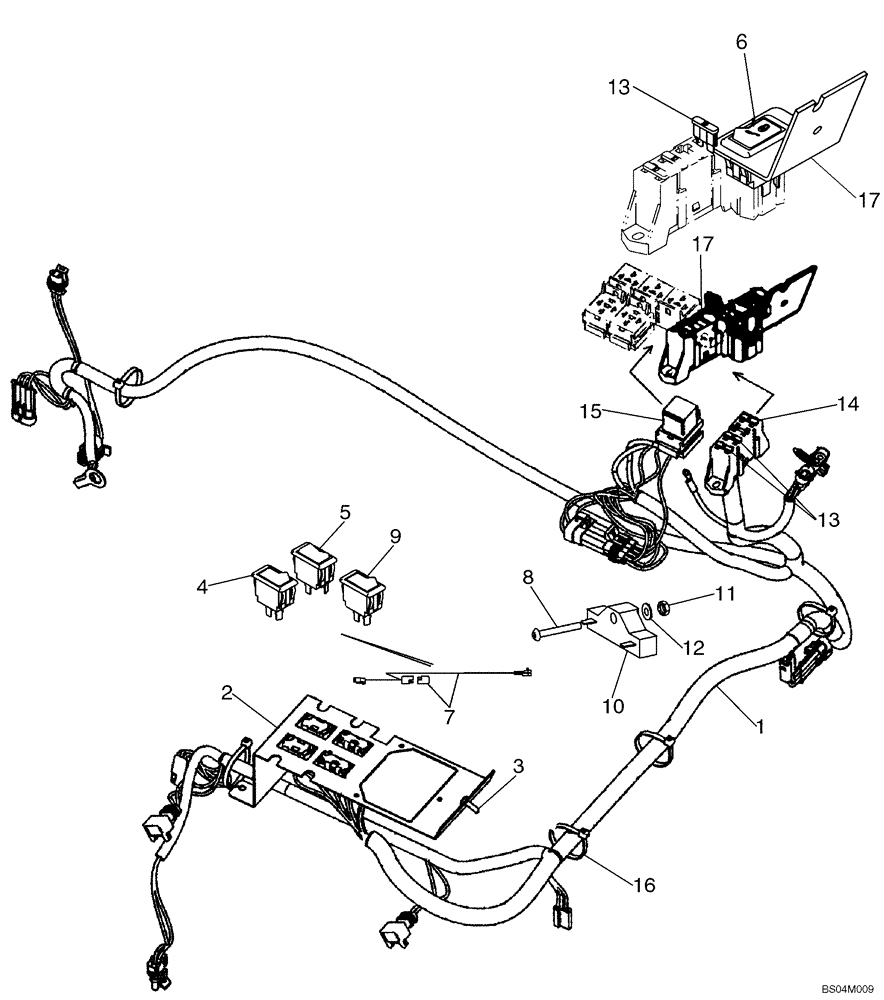

Запчасти Case IH 465 (04-09) - SWITCH MOUNTING - CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

1

87051482

HARNESS

Chassis Options; Not Illustrated

1шт.

2

87451851

PLATE

Switch Mounting

1шт.

2

87039870

PLATE

Switch Mounting; Models Without Air Conditioning; If Used

1шт.

3

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

1шт.

4

87414769

SWITCH

Rocker; High Flow; If Equipped

1шт.

5

133714A1

BEACON SWITCH

Rocker; Beacon Light; If Equipped

1шт.

6

87042143

SWITCH

Rocker; Hydraulic Coupler

1шт.

7

87446983

WIRE HARNESS

Hydraulic Coupler Switch

1шт.

8

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

1шт.

9

122736A1

FLASHER SWITCH

Rocker; Flasher; If Equipped

1шт.

10

86705351

RESISTOR

50 ohm

1шт.

11

80043416

NUT,M5

M5, Flg Ser

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

A149800

FUSE,10 Amp

10 Amp, Red

2шт.

14

A149801

FUSE,Lt Blue, 15 Amp

15 Amp, Lt Blue

1шт.

15

314451A1

RELAY

40 Amp, Heavy Duty; MFG # Stamped On Case - 4RD 931 680-01; If Used

1шт.

15

87436836

RELAY,12V, 40 Amp

40 Amp; MFG # Stamped On Case - ACB16221; If Used

1шт.

15

87355337

RELAY,12V, 45A

45 Amp; MFG # Stamped On Case - 4RD 931 680-01; If Used

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

17

410699A1

BRACKET

1шт.
