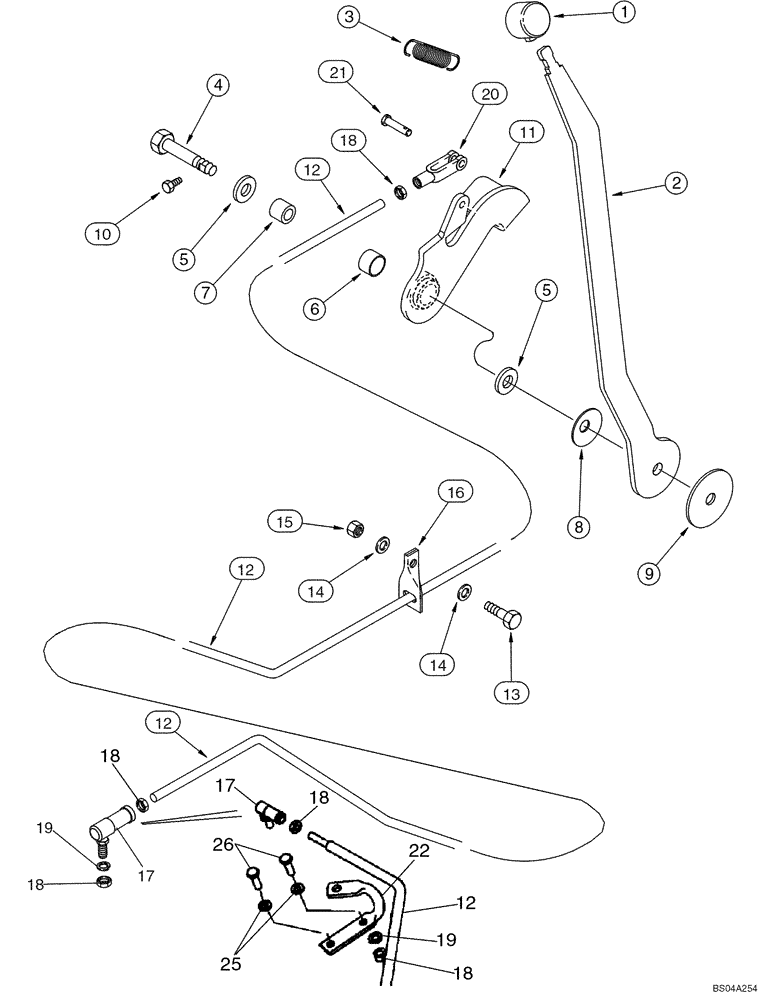

Запчасти Case IH 465 (03-02) - CONTROLS - THROTTLE, IF USED, SEE REF 22 (03) - FUEL SYSTEM

1

A177436

KNOB

1шт.

2

186904A1

CONTROL LEVER

Hand Operated

1шт.

3

D124939

SPRING

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

1шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

6

186905A1

BUSHING

1шт.

7

187035A2

SLEEVE

1шт.

8

R14771

WASHER

Belleville

1шт.

9

1342374C1

DISC

Friction

1шт.

10

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

87051874

ROD

Throttle Control

1шт.

13

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

14048221

NUT,M8 x 1.25, Cl 10

1шт.

16

344944A1

CRADLE

1шт.

17

H169920

BALL JOINT

1/4 NF

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

19

80682

LOCK WASHER,1/4"

1шт.

20

86520436

ADJUSTABLE CLEVIS,1/4" - 28

1шт.

21

D23693

AXLE PIN

1/4 x 1

1шт.

22

87051143

ROD ASSY.

1шт.

25

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.
