Запчасти Case IH 465 (02-34) - WATER PUMP - CONTROL (02) - ENGINE

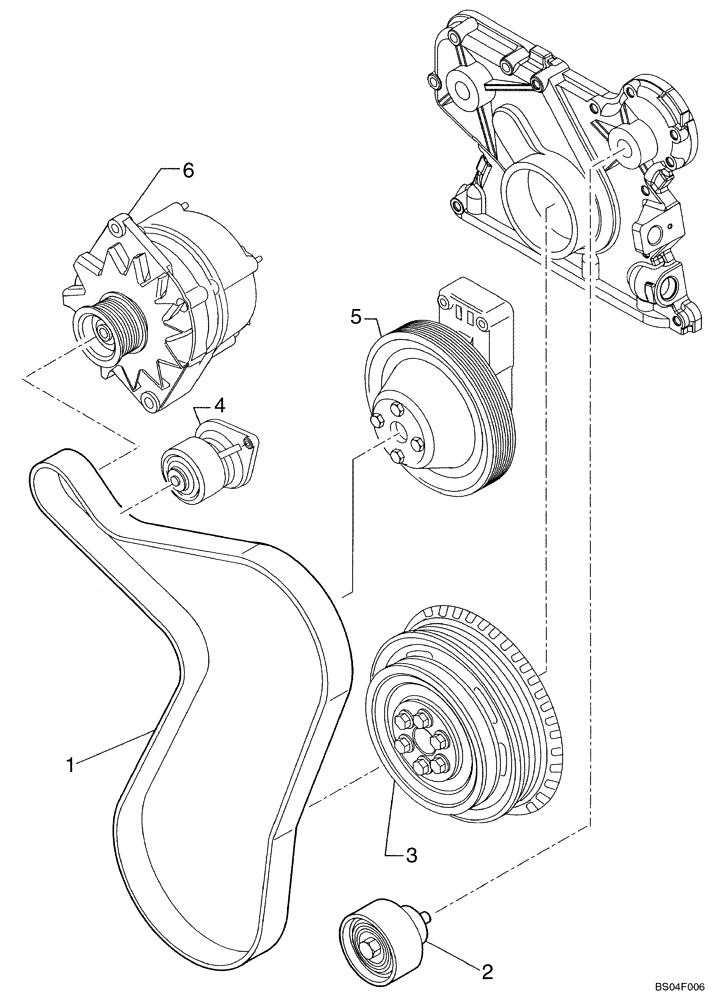

Схема запчастей Case IH 465 - (02-34) - WATER PUMP - CONTROL (02) - ENGINE
4
5
2
3
1
6

Артикул

Название

Примечание

Количество

1

86982450

V-BELT

CNH Name And Part Number On Belt

1шт.

1

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

No Longer Used, Order 85826230, Used With Pulley J914459, See Figure 02-35

1шт.

1

85826230

V-BELT,28.48 mm W x 1440.00 mm L, 8 Ribs

Used With Pulley J914459

1шт.

2

2853006

PULLEY,65mm OD

1шт.

3

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.

4

REF

INSTRUCTION

WATER PUMP; See Figure 02-31

1шт.

5

REF

INSTRUCTION

FAN DRIVE; See Figure 02-35

1шт.

6

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02

1шт.

Выбрано товаров: 8
