Запчасти Case IH 465 (02-14) - FLYWHEEL HOUSING (02) - ENGINE

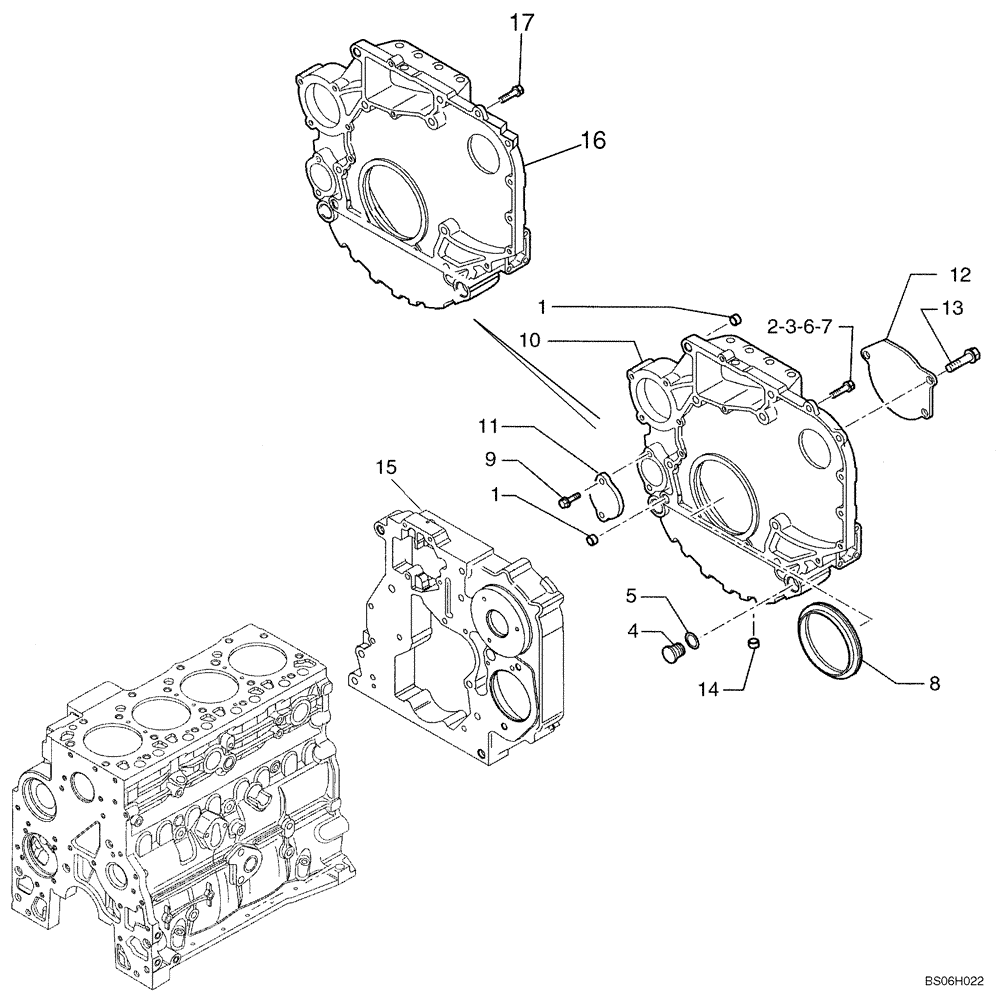

Схема запчастей Case IH 465 - (02-14) - FLYWHEEL HOUSING (02) - ENGINE
9
17
5
15
8
13
2
1
16
6
11
4
14
12
3
10
1
7

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

3шт.

3

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

7-8шт.

4

4895378

BUTTON PLUG,M29.2

Does Not Include Seal, Purchase Seal Separately

2шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

2шт.

6

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

5шт.

7

4899074

SCREW,Hex Flg, M12 x 1.75 x 120

2шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

9

4899068

BOLT,Flng, M8 x 1.25 x 16mm

Replaces 4899103 Screw M8 x 12

2шт.

10

2852023

COVER

Flywheel Housing; If Used; Used w/ Ref 5, 4899610 Camshaft, See Fig 02-28

1шт.

11

4895155

COVER

3 mm thk; Replaces 4895358, Cover 1.5 mm thk; Used On Some Models

1шт.

12

2854073

COVER

Fuel Pump Gear,2 Bolt Holes; Replaces 2852025 Cover, 3 Bolt Holes; Incl. 12A

1шт.

12a

2854075

O-RING,0.103" Thk x 2.987" ID, -151

Not Illustrated

1шт.

13

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

Replaces 4899020

2-3шт.

13

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

2шт.

14

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

14

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Pipe; Alternate part to 4893036

1шт.

15

REF

INSTRUCTION

COVER; See Figure 02-13

1шт.

16

2855180

HOUSING

Flywheel Housing Cover; If Used; Used w/ Ref 8, 2855099 Camshaft, See Fig. 02-26

1шт.

17

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

Used w/ Ref 16

1шт.

Выбрано товаров: 20
