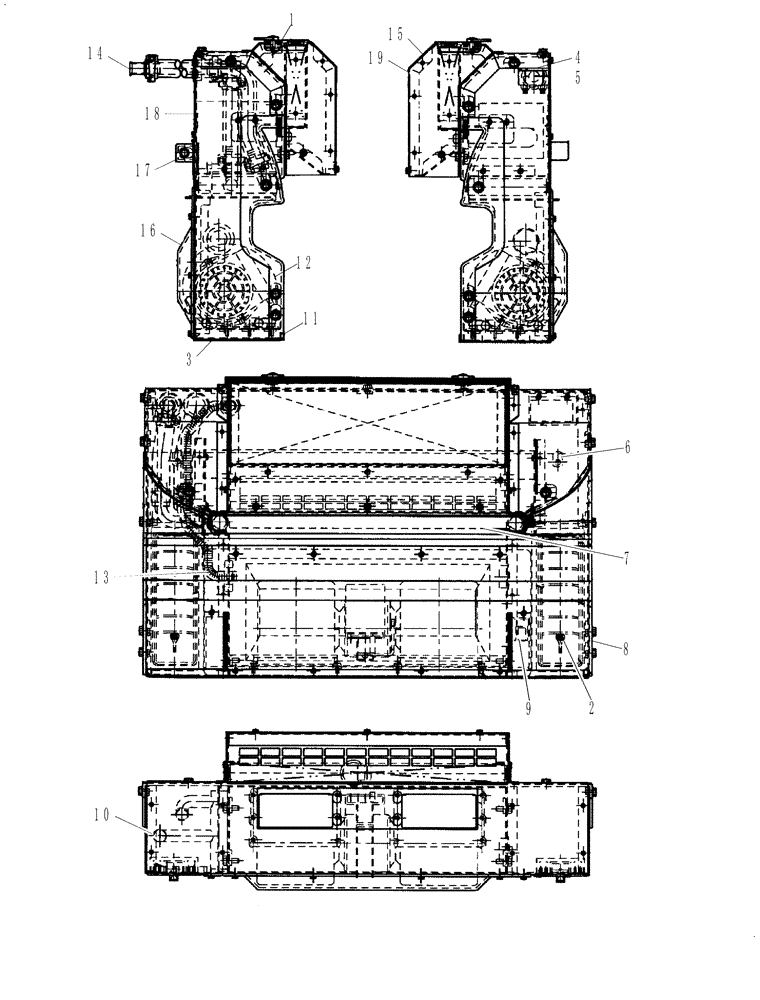

Запчасти Case IH 465 (09-38) - HEATER AND AIR CONDITIONING ASSY (09) - CHASSIS

87682495

AIR CONDITIONER,Assembly

Heater A/C Assy; Incl. 1 -18 (Order through Wholegoods)

1шт.

1

290502

PIN

5/8 Heater Hose

2шт.

2

87035459

VENT (AIR)

Louver #2451-A

2шт.

3

87029691

ELEMENT

Paper Filter

1шт.

3

87681240

CAB FILTER,367mm L x 108mm W x 24mm Thk, Charcoal

Charcoal Filter

1шт.

4

87029708

GASKET

Expansion Valve

1шт.

5

87029709

BRACKET

Expansion Valve

1шт.

6

87029711

EVAPORATOR

Incl. 6A, 6B

1шт.

6a

87035782

VALVE

Expansion; Not Shown

1шт.

7

87029694

CORE

Heater

1шт.

8

87029693

COVER

Channel

1шт.

9

86625480

THERMOSTATIC SWITCH

Cold Control

1шт.

10

87383269

CASE

1шт.

11

87029690

PANEL

Blower

1шт.

12

87383273

BLOWER

1шт.

12

87383273R

465 SKID STEER BSN N7M452623, Assy (1/05-12/07)

REMAN-BLOWER

1шт.

12

87383273C

Return Number

CORE-BLOWER

1шт.

13

87035460

WIRE HARNESS

Heater, A/C

1шт.

14

87035457

TUBE,0.625" DIA x 1.585" L

2шт.

15

87591145

COVER ASSY

Incl. 15A

1шт.

16

87383274

BLOWER

Blower

1шт.

17

87383275

PAN

Drain

1шт.

18

87383265

FOAM

Foam, Drain Pan

1шт.

19

87383267

FILTER

Heater/Evap.

1шт.

20

87383272

FILTER

Recirc; Not Shown

1шт.
