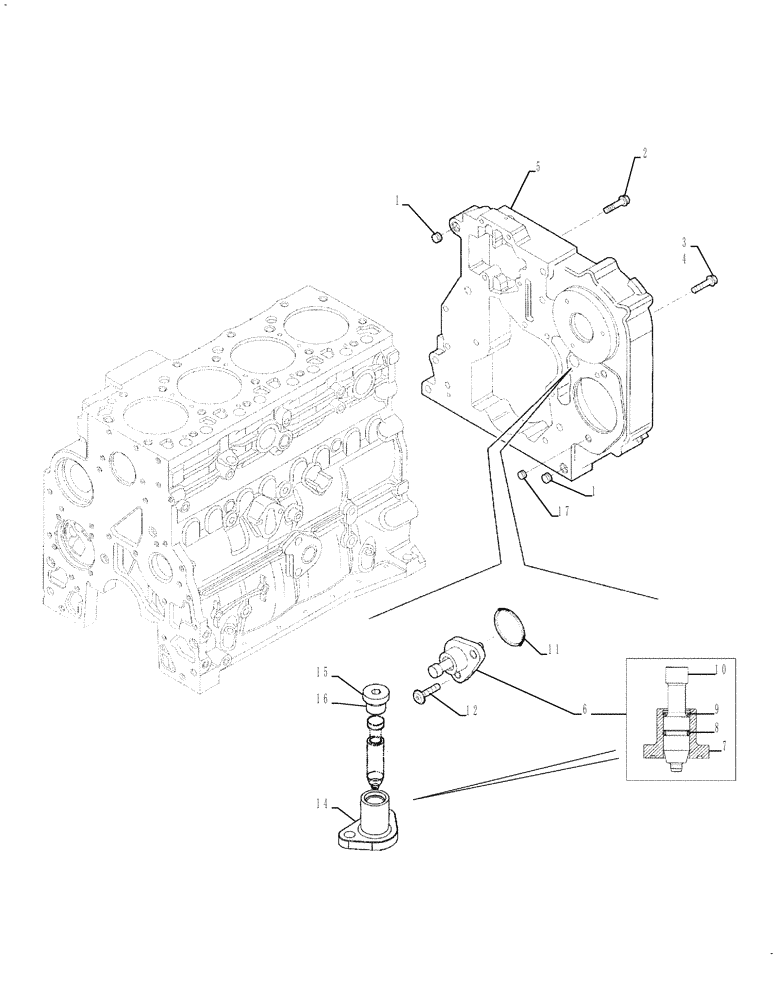

Запчасти Case IH 465 (02-12) - CYLINDER BLOCK - COVERS (02) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

4

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

2шт.

5

2852619

HOUSING

Rear

1шт.

6

2855287

HOUSING

Timing Pin Housing With Plug; Incl 14 - 16

1шт.

7

2855288

HOUSING

Timing Pin Housing

1шт.

8

2852517

O-RING

1шт.

9

2852759

CIRCLIP

Clip, Retaining

1шт.

10

2855295

PIN,11.93mm OD x 59.5mm L

Pin; Used Only When Engine Phase-In Is Being Performed

1шт.

11

17278781

O-RING

Replaces 2852519

1шт.

12

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

2855287

HOUSING

Timing Pin Housing Assembly; Incl. 14 - 16

1шт.

14

2855288

HOUSING

Timing Pin Housing

1шт.

15

16882515

PLUG

Socket Head Plug; Incl 16

1шт.

16

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

17

4899126

THREADED INSERT

12шт.
