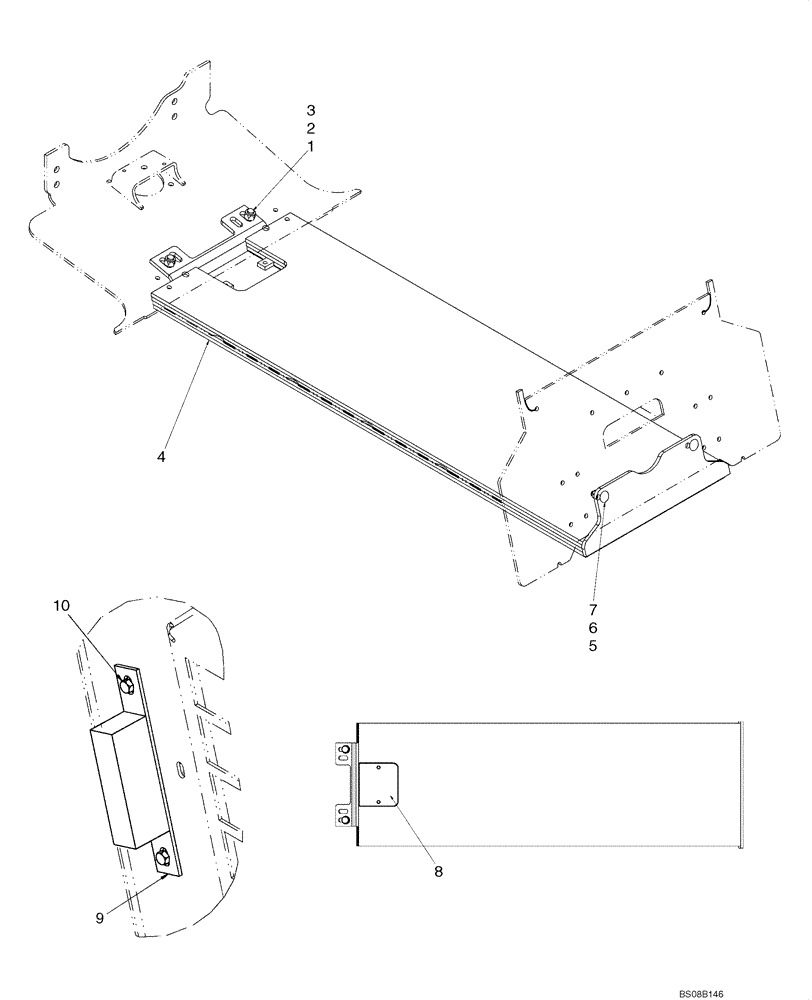

Запчасти Case IH 465 (09-17A) - COUNTERWEIGHT - INLINE PUMP (09) - CHASSIS

87671911

Kit, Additional Counterweight, Inline Pump; Incl 1 - 10

DIA KIT, ADD PROD

1шт.

1

86536985

NUT,M20 x 2.5, Cl 10

2шт.

2

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

2шт.

3

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

4

NSS

NOT SOLD SEPARAT

Weight

1шт.

5

86512555

NUT,M16 x 2, Cl 10

2шт.

6

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

412185

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

8

87672332

PLATE

1шт.

9

283061A1

SHEET

Plate, ROPS Post Spacer

2шт.

10

86639137

SELF-TAP SCREW,Hex Hd, M6.3 x 13

4шт.
