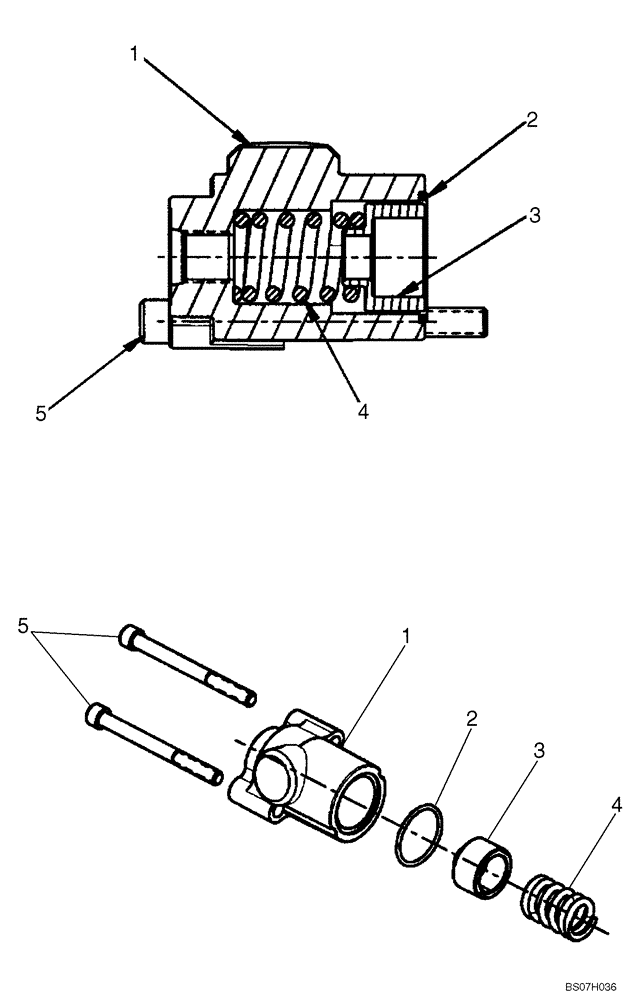

Запчасти Case IH 465 (08-34) - CONTROL VALVE - SPOOL END GROUP (08) - HYDRAULICS

87546974

HYDRAULIC VALVE

Manual Control Valve; Models With Pilot Control; Incl. Figures 08-21 - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35

1шт.

87546975

HYDRAULIC VALVE

Manual Control Valve; Pilot Contro Models With Hydraulic Attachment; Incl. Figures 08-21B - 08-24, 08-28, 08-30, 08-32 - 08-37

1шт.

87610532

SPOOL

Spool End Group; Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Spool Cap

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

Spring Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Cap Screw

2шт.
