Запчасти Case IH 465 (08-22) - CONTROL VALVE - SEAL REPLACEMENT KITS (08) - HYDRAULICS

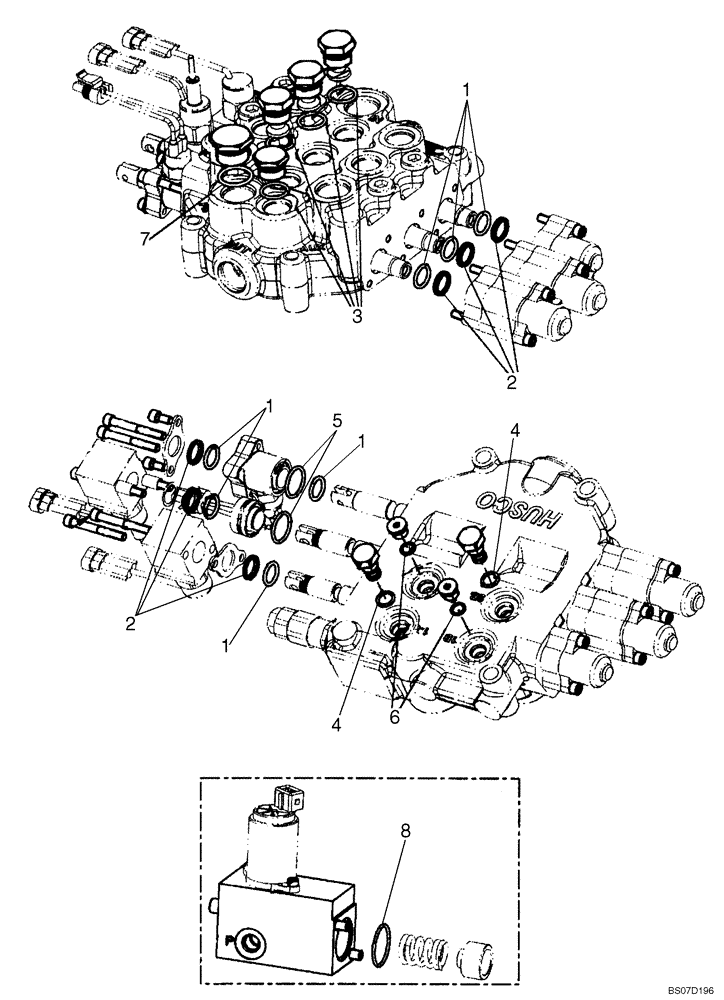

Схема запчастей Case IH 465 - (08-22) - CONTROL VALVE - SEAL REPLACEMENT KITS (08) - HYDRAULICS
5
7
1
6
1
8
4
2
1
4
1
13
2

Артикул

Название

Примечание

Количество

87583285

VALVE

Manual Control Valve; Incl. Figure 08-21 - 08-31

1шт.

87546974

HYDRAULIC VALVE

Manual Control Valve; Models With Pilot Control; Incl. Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35

1шт.

87546975

HYDRAULIC VALVE

Manual Control Valve; Pilot Contro Models With Hydraulic Attachment; Incl. Figures 08-21B - 08-24, 08-28, 08-30, 08-32 - 08-37

1шт.

87610349

SEAL KIT

Kit, Seal Replacement; Incl. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-ring, .818 OD

7шт.

2

NSS

NOT SOLD SEPARAT

Wiper, .796 OD

6шт.

3

NSS

NOT SOLD SEPARAT

O-ring, .949 OD

4шт.

4

NSS

NOT SOLD SEPARAT

O-ring, .614 OD

2шт.

5

NSS

NOT SOLD SEPARAT

O-ring, 1.063 OD

2шт.

6

NSS

NOT SOLD SEPARAT

O-ring, .498 OD

3шт.

7

NSS

NOT SOLD SEPARAT

O-ring, 1.156 OD

1шт.

8

NSS

NOT SOLD SEPARAT

O-ring, 1.129 OD

2шт.

Выбрано товаров: 12
