Запчасти Case IH 465 (08-21C) - CONTROL VALVE - 87583287 VALVE ASSY (08) - HYDRAULICS

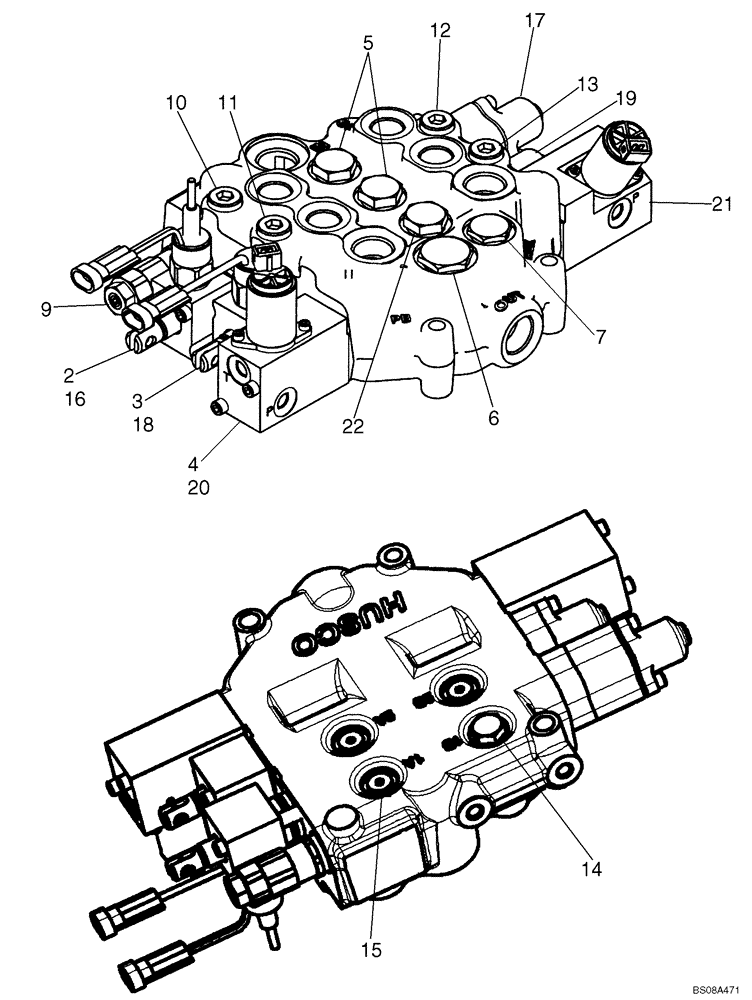

Схема запчастей Case IH 465 - (08-21C) - CONTROL VALVE - 87583287 VALVE ASSY (08) - HYDRAULICS
20
16
9
13
11
5
15
2
22
18
7
6
3
10
4
12
14
19
17
21

Артикул

Название

Примечание

Количество

1

87610349

SEAL KIT

Seal Replacement Kit; See Fig 08-22

1шт.

2

87445988

SOLENOID,Spool Lockout, With Manual Override

Spool Lock Out Solenoid - Manual; See Fig 08-25

1шт.

3

87445987

CARTRIDGE,Spool Lockout, NON-Manual Override

Spool Lock Out Solenoid - Non Manual; See Fig 08-26

1шт.

4

87576154

SOLENOID

High Flow Solenoid For EH Auxiliary; See Fig 08-37

2шт.

5

87576157

DAMPING VALVE

Check Valve; See Fig 08-28

2шт.

6

87576158

PLUG

Plug Assembly; See Fig 08-28

1шт.

7

87576160

PLUG

Plug Assembly; See Fig 08-28

1шт.

8

87576162

PLUG

Plug Assembly - Metric; See Fig 08-28

1шт.

9

87610350

VALVE PRESSURE RELIE

Main Relief Valve; See Fig 08-23

1шт.

10

87445932

VALVE

Work Port Anti-Cavitation Valve; See Fig 08-24

1шт.

11

87445943

VALVE

Work Port Relief Valve; See Fig 08-24

1шт.

12

87576153

VALVE

Work Port Relief Valve; See Fig 08-24

1шт.

13

87445935

VALVE

Work Port Relief Valve; See Fig 08-24

1шт.

14

87610351

VALVE,M14 x 1.5

Check Valve; See Fig 08-28

1шт.

15

87610352

PLUG

Plug Assembly

3шт.

16

87611849

SPOOL

Spool End Group; See Fig 08-25

1шт.

17

87643789

SPOOL

Spool End Group - Detent; See Fig 08-38

1шт.

18

87611848

SPOOL

Spool End Group; See Fig 08-26

1шт.

19

87576169

SPOOL

Spool End Group; See Fig 08-31

1шт.

20

87611846

SPOOL

Spool End Group - EHPV; See Fig 08-37

1шт.

21

87611847

SPOOL

Spool End Group - EHPV; See Fig 08-39

1шт.

22

87576161

PLUG

Plug Assembly

1шт.

Выбрано товаров: 22
