Запчасти Case IH 465 (08-21A) - CONTROL VALVE - 87546974 VALVE ASSY (08) - HYDRAULICS

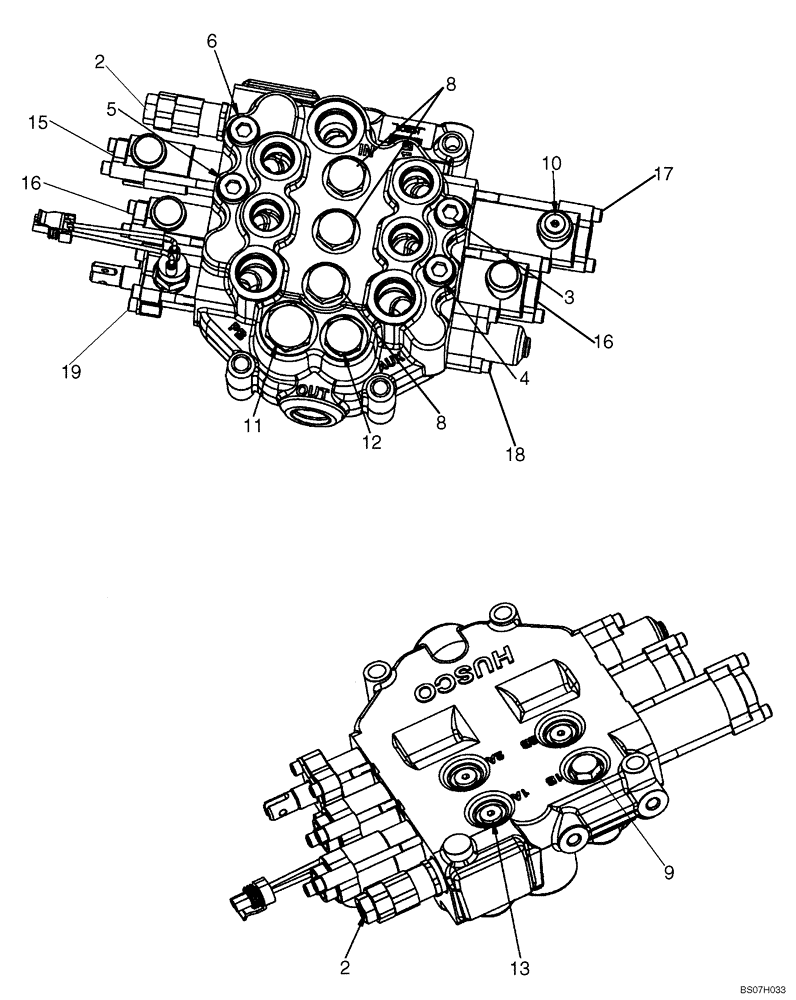

Схема запчастей Case IH 465 - (08-21A) - CONTROL VALVE - 87546974 VALVE ASSY (08) - HYDRAULICS
8
3
9
4
18
5
16
11
15
2
17
6
13
2
19
8
16
10
12

Артикул

Название

Примечание

Количество

87546974

HYDRAULIC VALVE

Manual Control Valve; Models With Pilot Control; Incl. Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35

1шт.

1

87610517

SEAL KIT

Seal Replacement Kit; See Fig. 08-33

1шт.

2

87610350

VALVE PRESSURE RELIE

Main Relief Valve, 210 Bar (3050 psi); See Fig. 08-23

1шт.

3

87576153

VALVE

Workport Relief Valve, 215 Bar; See Fig. 08-24

1шт.

4

87445935

VALVE

Workport Relief Valve, 230 Bar; See Fig. 08-24

1шт.

5

87445943

VALVE

Workport Relief Valve, 260 Bar; See Fig. 08-24

1шт.

6

87445932

VALVE

Workport Anti-Cavitation; See Fig. 08-24

1шт.

7

87446617

SWITCH

Auxiliary Spool Interlock Switch; See Fig. 08-27

1шт.

8

87576157

DAMPING VALVE

Check Valve Group; See Fig. 08-28

3шт.

9

87610351

VALVE,M14 x 1.5

Check Valve Group; See Fig. 08-28

1шт.

10

87610530

PLUG,7/16" - 20

Plug Assy

1шт.

11

87576158

PLUG

Plug Assembly; See Fig. 08-28

1шт.

12

87576160

PLUG

Plug Assembly; See Fig. 08-28

1шт.

13

87610352

PLUG

Plug Assembly

3шт.

14

87576162

PLUG

Plug Assembly, Metric; Not Illustrated; See Fig. 08-28

1шт.

15

87610531

SPOOL

Spool End Group; See Fig. 08-35

1шт.

16

87610532

SPOOL

Spool End Group; See Fig. 08-34

1шт.

17

87610533

REPAIR KIT

Spool End Group; See Fig. 08-33

1шт.

18

87576168

SPOOL

Spool End Group; See Fig. 08-30

1шт.

19

87611850

SPOOL

Spool End Group; See Fig. 08-27

1шт.

Выбрано товаров: 20
