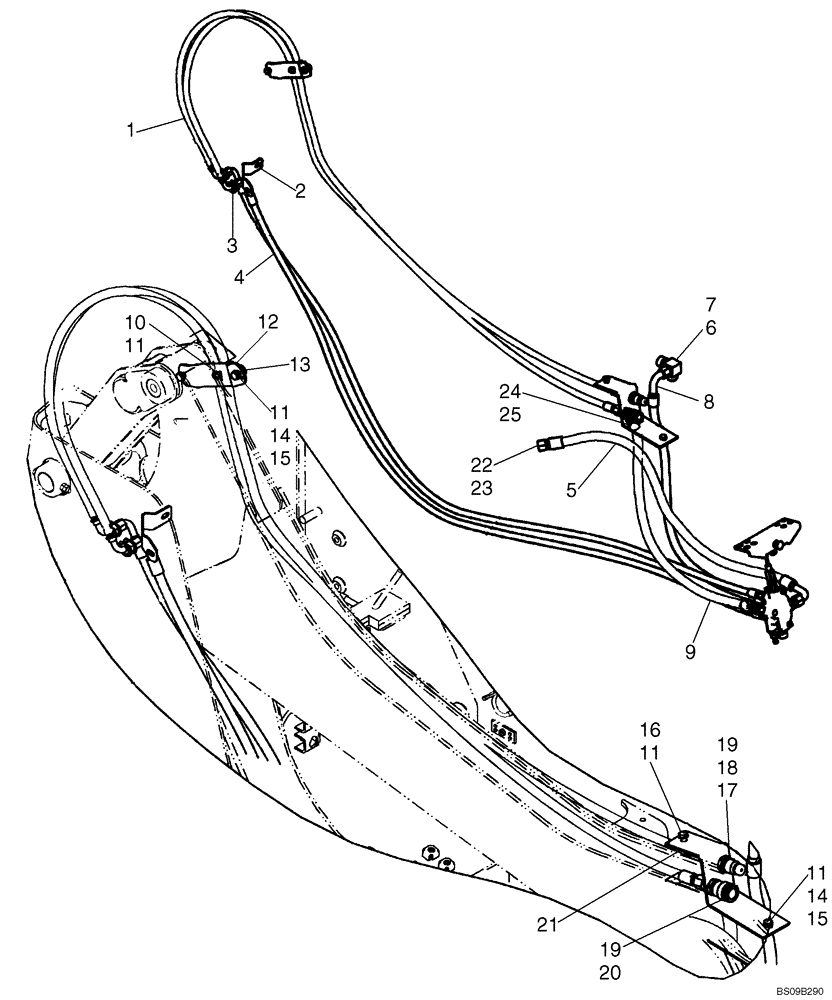

Запчасти Case IH 465 (08-19) - SECONDARY FRONT AUXILIARY (08) - HYDRAULICS

1

87457029

HOSE ASSY.

2шт.

2

87457183

ANGLE

Support

1шт.

3

87301328

SNAP RING

#X98 E-Style; Replaces 103-3398

4шт.

4

87457028

HOSE ASSY.

2шт.

5

87451962

HOSE ASSY.

Secondary Auxiliary Outlet

1шт.

6

129037A1

FITTING,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

1-5/16 fl br x fl x Or; Incl. 7

1шт.

7

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

87452084

HOSE ASSY.

Tank Return; If Used

1шт.

8

87603114

HOSE

Secondary Aux Return

1шт.

9

87451963

HOSE ASSY.

Secondary Auxiliary Inlet; Used With Mech Control

1шт.

9

87603115

HOSE

Secondary Auxiliary Inlet; Used With Pilot Control

1шт.

10

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Replaces 614-10040

1шт.

11

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

12

H231894

CLAMP

1шт.

13

253476A1

BAR

Clamp Mounting

1шт.

14

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

15

86512554

NUT,M10 x 1.5, Cl 10

3шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

17

87417308

COUPLING, BREAK AWAY

1/2; Male; Incl. 17; If Used

1шт.

17

87741500

QUICK MALE COUPLING,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

18

87426762

RING

Not Illustrated Separately

1шт.

19

595460

BHD LOCK NUT,7/8" - 14

2шт.

20

393394A1

COUPLING, BREAK AWAY

1/2; Female; If Used

1шт.

20

87741499

COUPLING, QUICK, FEM,7/8" - 14, 37 Degree x ISO 12.5mm

1шт.

21

87446078

PLATE

1шт.

22

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 23

1шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 25

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
