Запчасти Case IH 465 (08-15) - COMBINATION VALVE - HIGH FLOW (08) - HYDRAULICS

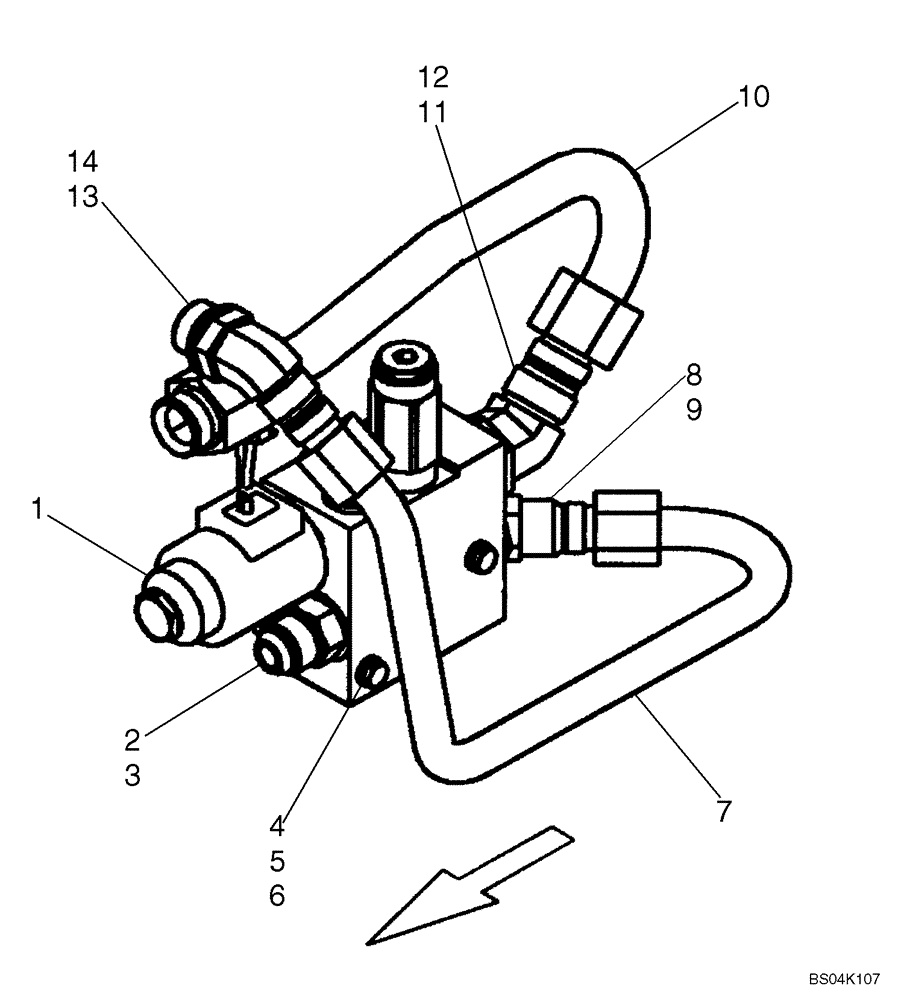

Схема запчастей Case IH 465 - (08-15) - COMBINATION VALVE - HIGH FLOW (08) - HYDRAULICS
2
4
7
13
6
12
14
10
5
1
9
3
8
11

Артикул

Название

Примечание

Количество

1

87012669

VALVE

See Figure 08-20

1шт.

2

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl. 3

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

87404992

SQUARE NUT,M6 x 1.0, Cl 8

M6 x 1

2шт.

7

87436469

HYD TUBE,15.88 mm OD

High Flow Supply

1шт.

8

86512996

ELBOW,45 Degree, 7/8"-14 x 3/4"-16, O-Ring

Incl. 9

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

87436470

HYD TUBE,19.05 mm OD

High Flow Return

1шт.

11

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 12

1шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl.14

1шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 14
