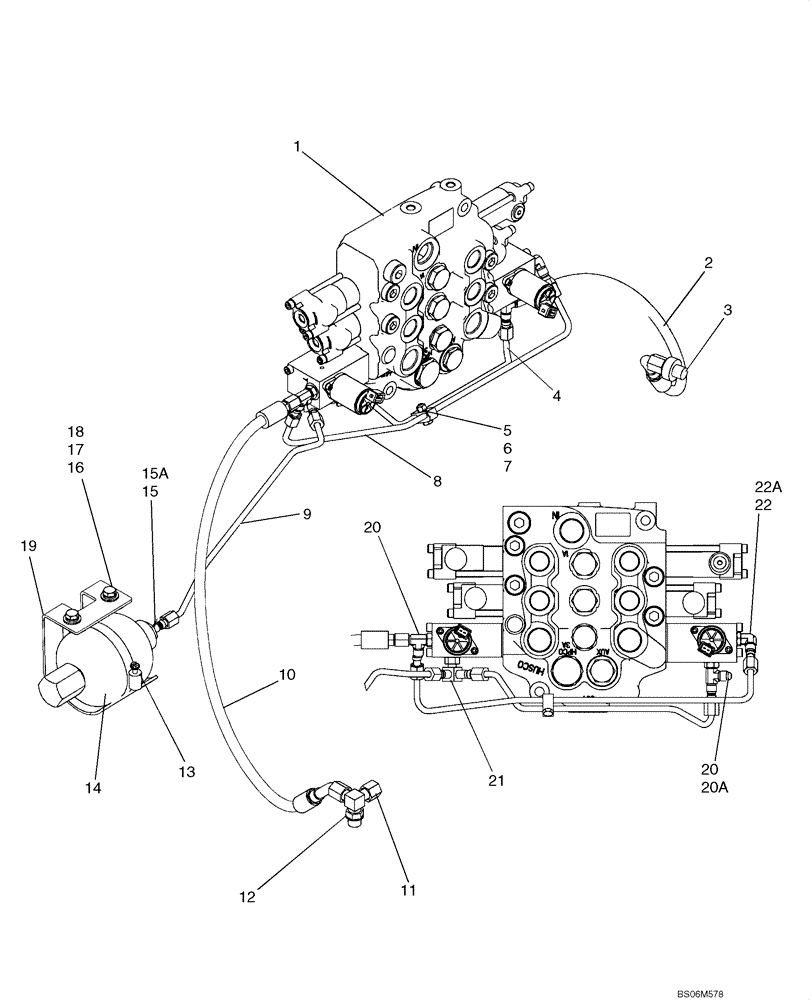

Запчасти Case IH 465 (08-13B) - HYDRAULIC ATTACHMENTS - CONTROLS (465 WITH PILOT CONTROL) (08) - HYDRAULICS

465 WITH PILOT CONTROL

1шт.

87575597

SERVICE KIT

KIT; Valve Installation, Hydraulic Attachment; Incl. 1 - 22A and Instructions

1шт.

1

87546975

HYDRAULIC VALVE

Pilot Control Models With Hydraulic Attachment; Incl. Figures 08-21B - 08-24, 08-28, 08-30, 08-32 - 08-37

1шт.

2

87547026

HOSE

465 mm (18.3 in); E-H Supply

1шт.

3

179189A1

VALVE POPPET

1шт.

4

87443078

HYD TUBE

1шт.

5

608089

CLAMP

Double

1шт.

6

87030561

NUT,M6 x 1, Cl 8

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

8

87018051

TUBE,6.35 mm OD

1шт.

9

87439064

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

10

87564006

HOSE

660 mm (26 in); E-H Drain

1шт.

11

574342

CAP,9/16" - 18 JIC

1шт.

12

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

13

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

1шт.

14

86624732

ACCUMULATOR

1шт.

15

87010110

HYD CONNECTOR

37FL x ORB 4-8; Incl. 15A

1шт.

15a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

19

87439065

BRACKET

Accumulator Mounting

1шт.

20

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 20A

2шт.

20a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

87443051

ELBOW

1шт.

22

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 22A

1шт.

22a

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
