Запчасти Case IH 465 (08-13) - HYDRAULIC ATTACHMENTS - CONTROLS (450 WITH SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS

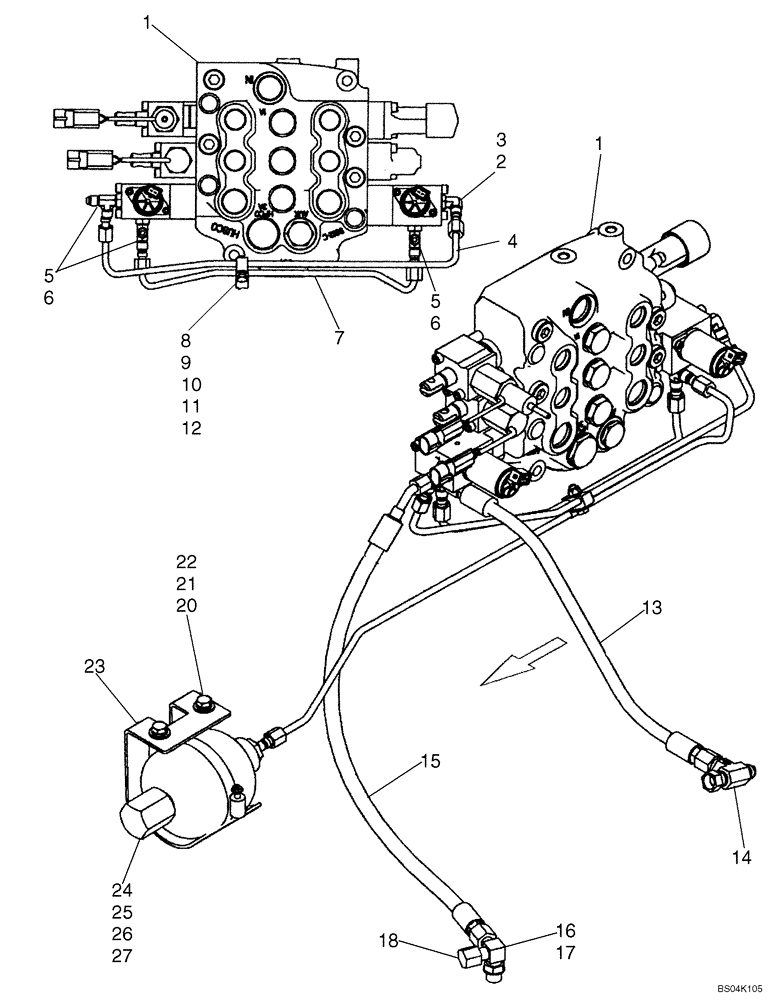

Схема запчастей Case IH 465 - (08-13) - HYDRAULIC ATTACHMENTS - CONTROLS (450 WITH SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS
8
18
7
17
25
23
13
2
9
26
22
3
5
24
14
15
11
6
16
20
27
1
12
6
1
10
21
5
4

Артикул

Название

Примечание

Количество

87638779

SERVICE KIT

Conversion Kit, Split Pump to In-Line Pump, See Fig 08-13A Ref 13

1шт.

1

87583287

VALVE

Control Valve; Replaces 87527175; See Figure 08-21C

1шт.

1

87527175

VALVE

Replaces 87446764; See Figure 08-08

1шт.

2

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

Incl. 3

1шт.

3

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

87018051

TUBE,6.35 mm OD

1шт.

5

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl. 6

3шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

7

87438840

HYD TUBE,6.35 mm OD

Pilot Pressure

1шт.

8

608089

CLAMP

Double

1шт.

9

86512440

NUT,M6, Cl 10

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

11

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

12

80272535

WIRE CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, P Type

Replaces 515-2163; Clamp,Closed 6.3mm Insul 1/4 Bolt

1шт.

13

87445655

HOSE ASSY.

Charge Pressure

1шт.

14

87438766

TEE

Swivel; 3/8

1шт.

15

87019282

HOSE

564 (22.2 in); If Used

1шт.

15

87460903

HOSE

615 (24.2 in); If Used

1шт.

15

87427370

HOSE ASSY.

610 (24 in); If Used

1шт.

16

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

3/8 Tube; Incl. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

574342

CAP,9/16" - 18 JIC

1шт.

19

87458744

HYD TUBE,6.35 mm OD x 583.4, 124.1 mm L

Pilot Pressure

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

22

87016617

LOCK WASHER,M8

2шт.

23

87439065

BRACKET

Accumulator Mounting

1шт.

23

87621221

BRACKET

Accumulator Mounting

1шт.

24

86624732

ACCUMULATOR

Bosch-Rexroth

1шт.

24

87376969

ACCUMULATOR

Hydac

1шт.

25

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

Replaces 214-1464; If Used

1шт.

25a

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

1шт.

26

87010110

HYD CONNECTOR

Incl Ref 27; 37 FL X ORB 4-8; Replaces 218-5359; If Used

1шт.

26a

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 27A

1шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Replaces 237-6008

1шт.

27a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Used With 26A

1шт.

Выбрано товаров: 36
