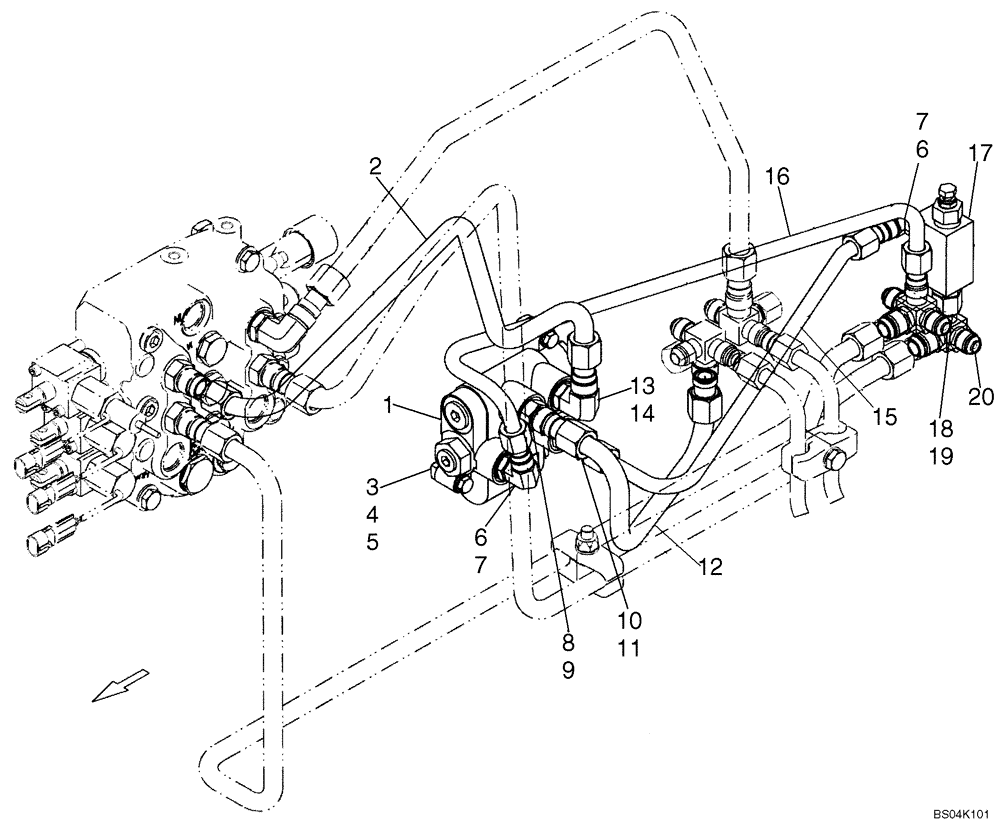

Запчасти Case IH 465 (08-03) - HYDRAULICS - SELF-LEVELING (08) - HYDRAULICS

1

280126A2

VALVE

Self Level; See Figure 08-04

1шт.

2

87425442

HYD TUBE,15.88 mm OD x 481.2, 239 mm L

1шт.

3

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8 x 1.25

2шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl. 9

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 Tube

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

87425441

HYD TUBE,15.88 mm OD

1шт.

13

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

87425439

TUBE,12.7 mm OD x 382, 115 mm L

1шт.

16

87434411

HYD TUBE,12.7 mm OD

1шт.

17

294650A1

VALVE

Relief

1шт.

18

1327736C1

ELBOW

3/4 fl x 3/4 Or, Incl. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

280107A1

TEE

2шт.
