Артикул
Название
Примечание
Количество
REF
INSTRUCTION

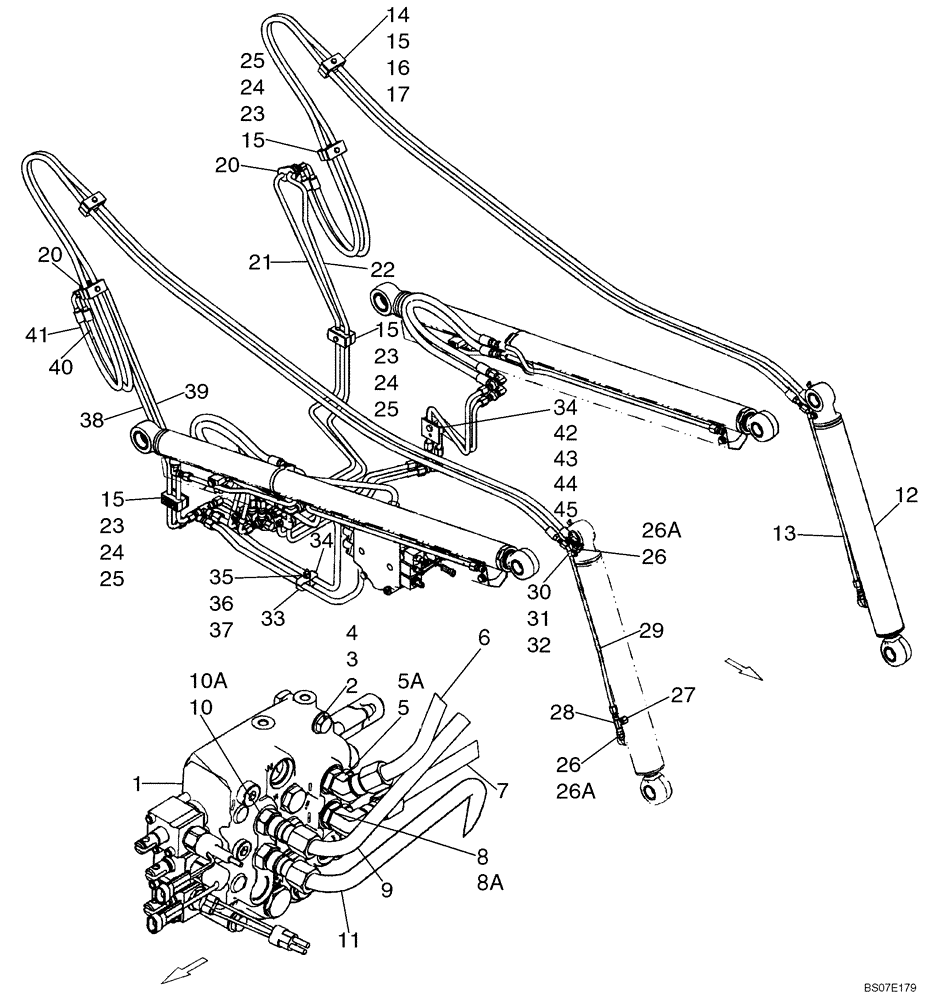

MODELS WITH IN-LINE PUMP CONFIGURATION
1шт.
1
87446760
CONTROL VALVE
See Figure 08-09
1шт.
1
87635384R
465 SKID STEER BSN N7M452623 (1/05-12/07), Reman for New PN 87446760
REMAN-HYD VALVE
1шт.
1
87635384C
Return Number
CORE-VALVE HYD
1шт.
87638779
SERVICE KIT
ConversionKit, Split Pump To In-Line Pump, Incl 11
1шт.
1
87527172
VALVE
Replaces 87446760; Component Parts Not Yet Available; Models With Hydraulic Attachment, See Figure 08-13
1шт.
1
87635384R
465 SKID STEER BSN N7M452623 (1/05-12/07), Reman for New PN 87527172
REMAN-HYD VALVE
1шт.
1
87635384C
Return Number
CORE-VALVE HYD
1шт.
1
87583285
VALVE
If Used; Models With Hydraulic Attachment, See Figure 08-21 - 08-31
1шт.
1
87546974
HYDRAULIC VALVE
Models With Pilot Control; See Figures 08-21A - 08-24, 08-27, 08-28, 08-30, 08-32 - 08-35 Models With Hydraulic Attachment, See Figure 08-13B
1шт.
2
120070
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
2шт.
4
230427A1
SQUARE NUT,M10 x 1.5mm, Cl 8
Square, M10 x 1.5
3шт.
5
330345
45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring
Incl. 5A
1шт.
6
87447877
HYD TUBE,15.9 mm OD
Valve Lift, Raise
1шт.
7
87447747
TUBE,15.9 mm OD
Valve Tip, Dump
1шт.
8
164910
90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB
Incl. 8A
1шт.
9
87434194
HYD TUBE,15.88 mm OD
Valve Lift, Lower
1шт.
11
87365159
HYD TUBE,11.66 mm ID x 15.88 mm OD x 357.3, 856.1 mm L
Valve Tip, Curl
1шт.
12
258426A3
CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke
Tip, 69.8 Cylinder, 34.9 Rod; See Figure 08-12
2шт.
12
258426A3R
465 BSN N7M452623
REMAN-HYD CYLINDER
2шт.
12
258426A3C
Return Number
CORE-HYD CYLINDER
2шт.
13
254351A4
TUBE,591 mm Length
Tip Cylinder Rod End
1шт.
14
257857A1
CLAMP
4шт.
15
257859A1
PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk
PLATE,SPACER
6шт.
17
293891A1
SPACER
1/4 x 33
2шт.
18
814-8060
BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8
2шт.
19
293892A1
SPACER
1/4 x 38.5
2шт.
20
376523A2
SUPPORT,1/2"
1/2
4шт.
21
87433074
HYD TUBE,12.7 mm OD x 661, 656.5 mm L
Curl, Left Hand
1шт.
22
87433075
HYD TUBE,12.7 mm OD
Dump, Left Hand
1шт.
23
259905A1
SPACER
1/4 x 31.25
2шт.
24
257919A1
CLAMP BRACKET
2шт.
25
814-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8
2шт.
28
129274
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
If Used
1шт.
29
87426129
HYD TUBE,9.53 mm OD x 553.7, 13.9 mm L
553.7 mm; Tip Cylinder Rod End; Incl. (1) Sleeve 218-363 (2) Nut 218-343; If Used
1шт.
29
87522884
HYD TUBE,7.05 mm ID x 9.53 mm OD x 550.04, 13.9 mm L
550 mm; Tip Cylinder Rod End; Incl. (1) Sleeve 218-363 (2) Nut 218-343; If Used
1шт.
29
254351A4
TUBE,591 mm Length
591 mm; Tip Cylinder Rod End; Incl. (1) Sleeve 218-363 (2) Nut 218-343; If Used
1шт.
218-363
SLEEVE,37 Degree, 3/8" Tube
1шт.
218-343
TUBE NUT,37 Degree, 9/16"-18, Type B
2шт.
31
86625263
WASHER,9mm ID x 20mm OD x 1.6mm Thk
2шт.
32
86637978
CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type
2шт.
33
D120613
CLAMP,20mm ID
5/8
1шт.
34
D120614
CLAMP,25mm W x 68mm L x 9mm Thk
2шт.
35
412151
BOLT,M10 x 1.5 x 61.58mm, Cl 8.8
1шт.
36
86624175
WASHER,1.16" ID x 2" OD x 0.06" Thk
2шт.
37
86512554
NUT,M10 x 1.5, Cl 10
1шт.
38
87425203
HYD TUBE,12.7 mm OD x 706.8, 306.4 mm L
Curl, Right Hand
1шт.
39
87425204
HYD TUBE,12.7 mm OD x 691.4, 308.7 mm L
Dump, Right Hand
1шт.
40
87422625
HOSE ASSY.
Tip Cylinder Base End
2шт.
41
87422626
HOSE ASSY.
Tip Cylinder Rod End
2шт.
42
87450067
BAR
Clamp Mounting; If Used
1шт.
43
325829
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
If Used
1шт.
44
230427A1
SQUARE NUT,M10 x 1.5mm, Cl 8
M10
1шт.
45
D120679
CLAMP,Tube, 1/2"
1/2 in
1шт.
Выбрано товаров: 64
