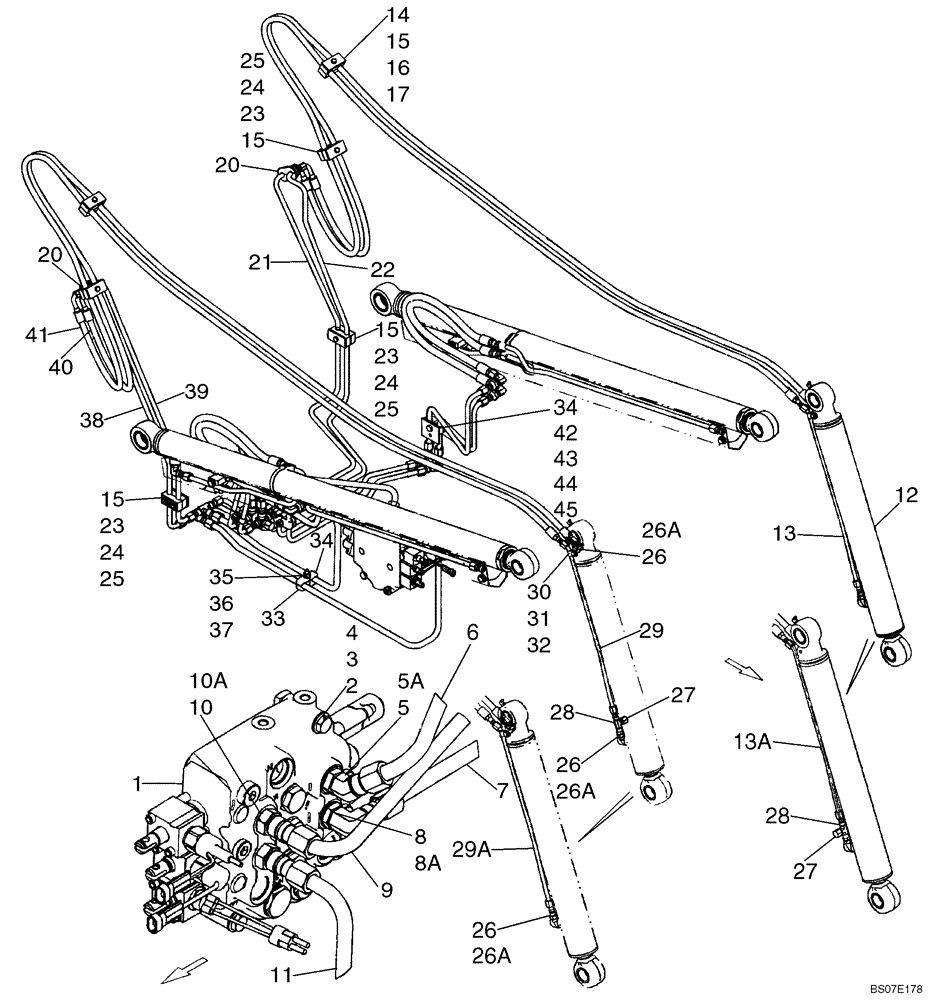

Запчасти Case IH 465 (08-02) - HYDRAULICS - LOADER BUCKET (WITH SPLIT PUMP CONFIGURATION) (08) - HYDRAULICS

REF

INSTRUCTION

MODELS WITH SPLIT PUMP CONFIGURATION

1шт.

1

87446760

CONTROL VALVE

See Figure 08-09

1шт.

1

87635384R

465 SKID STEER BSN N7M452623 (1/05-12/07), Reman for New PN 87446760

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

87638779

SERVICE KIT

ConversionKit, Split Pump To In-Line Pump, See Fig 08-02A Ref 11

1шт.

1

87527172

VALVE

Replaces 87446760; Component Parts Not Yet Available

1шт.

1

87635384R

465 SKID STEER BSN N7M452623 (1/05-12/07), Reman for New PN 87527172

REMAN-HYD VALVE

1шт.

1

87635384C

Return Number

CORE-VALVE HYD

1шт.

1

87583285

VALVE

If Used; See Figures 08-21 - 08-31

1шт.

2

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

Square, M10 x 1.5

3шт.

5

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl. 5A

1шт.

5a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87447877

HYD TUBE,15.9 mm OD

Valve Lift, Raise

1шт.

7

87447747

TUBE,15.9 mm OD

Valve Tip, Dump

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl. 8A

1шт.

8a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

87434194

HYD TUBE,15.88 mm OD

Valve Lift, Lower

1шт.

10

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 10A

2шт.

10a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

87425210

HYD TUBE,15.88 mm OD

Valve Tip, Curl

1шт.

12

258426A3

CYLINDER ASSY.,Double Acting, 34.9mm Rod, 525mm Stroke

Tip, 69.8 Cylinder, 34.9 Rod; See Figure 08-12

2шт.

12

258426A3R

465 BSN N7M452623

REMAN-HYD CYLINDER

2шт.

12

258426A3C

Return Number

CORE-HYD CYLINDER

2шт.

13

254351A4

TUBE,591 mm Length

591 mm; Tip Cylinder Rod End; If Used

1шт.

13a

87426129

HYD TUBE,9.53 mm OD x 553.7, 13.9 mm L

553.7 mm; Tip Cylinder Rod End; If Used

1шт.

13a

87522884

HYD TUBE,7.05 mm ID x 9.53 mm OD x 550.04, 13.9 mm L

550 mm; Tip Cylinder Rod End; If Used

1шт.

14

257857A1

CLAMP

4шт.

15

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

6шт.

16

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

17

293891A1

SPACER

1/4 x 33

2шт.

18

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

19

293892A1

SPACER

1/4 x 38.5

2шт.

20

376523A2

SUPPORT,1/2"

1/2

4шт.

21

87433074

HYD TUBE,12.7 mm OD x 661, 656.5 mm L

Curl, Left Hand

1шт.

22

87433075

HYD TUBE,12.7 mm OD

Dump, Left Hand

1шт.

23

259905A1

SPACER

1/4 x 31.25

2шт.

24

257919A1

CLAMP BRACKET

2шт.

25

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

26

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 26A

4шт.

26a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

574342

CAP,9/16" - 18 JIC

1шт.

28

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

29

87426129

HYD TUBE,9.53 mm OD x 553.7, 13.9 mm L

553.7 mm; Tip Cylinder Rod End; Incl. (1) Sleeve 218-363 (2) Nut 218-343; If Used

1шт.

29

87522884

HYD TUBE,7.05 mm ID x 9.53 mm OD x 550.04, 13.9 mm L

550 mm; Tip Cylinder Rod End; Incl. (1) Sleeve 218-363 (2) Nut 218-343; If Used

1шт.

218-363

SLEEVE,37 Degree, 3/8" Tube

1шт.

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

2шт.

29a

254351A4

TUBE,591 mm Length

591 mm; Tip Cylinder Rod End; If Used

1шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

32

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

(9.5mm; M8 Bolt)

2шт.

33

D120613

CLAMP,20mm ID

5/8

1шт.

34

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

35

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

36

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

2шт.

37

86512554

NUT,M10 x 1.5, Cl 10

1шт.

38

87425203

HYD TUBE,12.7 mm OD x 706.8, 306.4 mm L

Curl, Right Hand

1шт.

39

87425204

HYD TUBE,12.7 mm OD x 691.4, 308.7 mm L

Dump, Right Hand

1шт.

40

87422625

HOSE ASSY.

Tip Cylinder Base End

2шт.

41

87422626

HOSE ASSY.

Tip Cylinder Rod End

2шт.

42

87450067

BAR

Clamp Mounting; If Used

1шт.

43

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

If Used

1шт.

44

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10

1шт.

45

D120679

CLAMP,Tube, 1/2"

1/2 in

1шт.
