Артикул
Название
Примечание
Количество
REF
INSTRUCTION

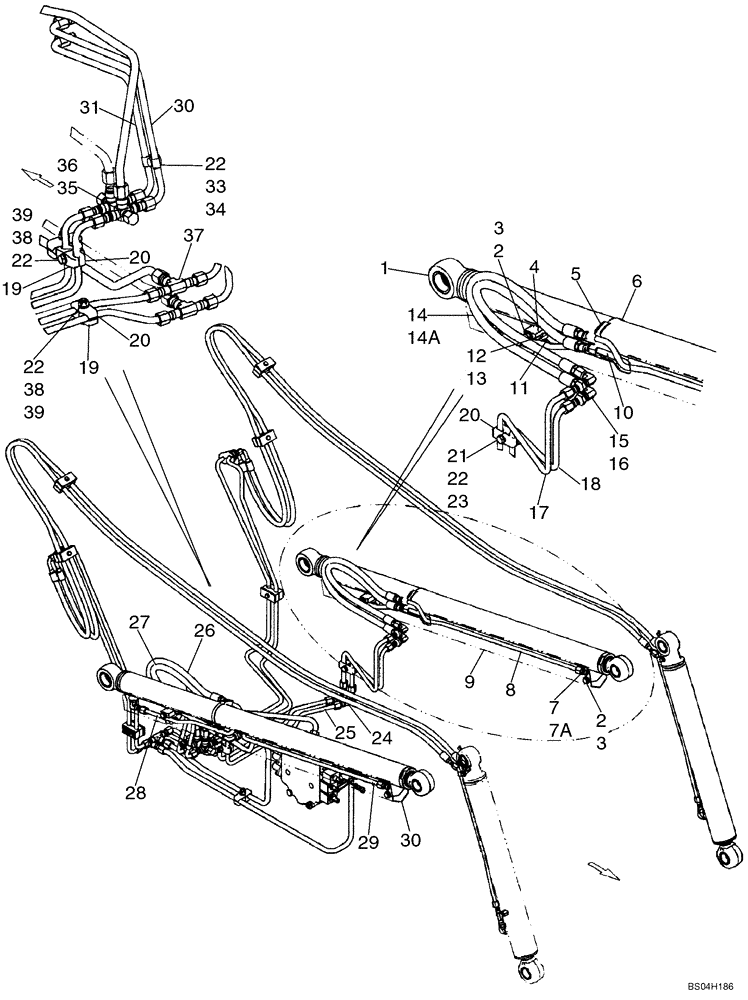

MODELS WITH SPLIT PUMP CONFIGURATION
1шт.
1
139091A3
CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1245mm Stroke
Lift; 63.5 Dia Cylinder, 44.4 Dia Rod; See Figure 08-11
2шт.
1
139091A3R
465 BSN N7M452623
REMAN-HYD CYLINDER
2шт.
1
139091A3C
Return Number
CORE-HYD CYLINDER
2шт.
1
300873A2
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 1245mm Stroke
Lift; 63.5 Dia Cylinder, 50.8 Dia Rod; See Fig 08-11A
2шт.
1
300873A2R
465 SKID STEER BSN N7M452623, Lift (1/05-12/07)
REMAN-HYD CYLINDER
2шт.
1
300873A2C
Return Number
CORE-HYD CYLINDER
2шт.
2
43138
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
8шт.
3
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
8шт.
4
197509A1
PROTECTOR
2шт.
5
255245A1
BLOCK
Dual Tube Saddle
2шт.
6
214-1456
HOSE CLAMP,#56, 3.06" - 4", Type F Worm
2шт.
7
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
Incl. 7A
2шт.
8
253311A4
TUBE,843, 83 mm Length
Left Hand Lift Cylinder Rod End
1шт.
9
253313A1
PROTECTOR
Lift Cylinder Left Hand
1шт.
10
253309A4
TUBE,443, 62 mm Length
Left Hand Lift Cylinder Base End
1шт.
11
197508A1
HOLDER
2шт.
13
832-41408
NUT,M8 x 1.25, Cl 10
2шт.
14
128830
90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB
Incl. 14A
2шт.
15
524036
BHD LOCK NUT,Blkhd, 3/4"-16
4шт.
16
218-694
ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree
4шт.
17
87434196
HYD TUBE,12.7 mm OD
Left Hand Lift, Raise
1шт.
18
87425293
HYD TUBE,12.7 mm OD x 305, 194 mm L
Left Hand Lift, Lower
1шт.
19
D120679
CLAMP,Tube, 1/2"
1/2
3шт.
20
D120614
CLAMP,25mm W x 68mm L x 9mm Thk
3шт.
22
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
7шт.
23
230427A1
SQUARE NUT,M10 x 1.5mm, Cl 8
Square, M10 x 1.5
1шт.
24
218-474
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC
2шт.
25
419000A1
TUBE
Lift, Left Hand
2шт.
26
252962A2
HOSE
Lift Cylinder Rod End
2шт.
27
252961A2
HOSE
Lift Cylinder Base End
2шт.
28
253305A4
TUBE,443, 94 mm Length
Right Hand Lift Cylinder Base End
1шт.
29
253307A4
TUBE,843, 83 mm Length
Right Hand Lift Cylinder Rod End
1шт.
30
253312A1
PROTECTOR
Lift Cylinder Right Hand
1шт.
31
87425295
HYD TUBE,12.7 mm OD x 298.5, 194.5 mm L
Right Hand Lift, Lower
1шт.
32
87425294
HYD TUBE,12.7 mm OD x 304.3, 276.8 mm L
Right Hand Lift, Raise
1шт.
33
86010402
CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type
2шт.
34
614-10016
BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd
1шт.
35
280107A1
TEE
With Side Outlet
2шт.
37
218-1584
TEE,37 Degree, 3/4"-16 x 7/8"-14, Br
2шт.
38
86512554
NUT,M10 x 1.5, Cl 10
2шт.
39
325829
BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8
2шт.
Выбрано товаров: 47
