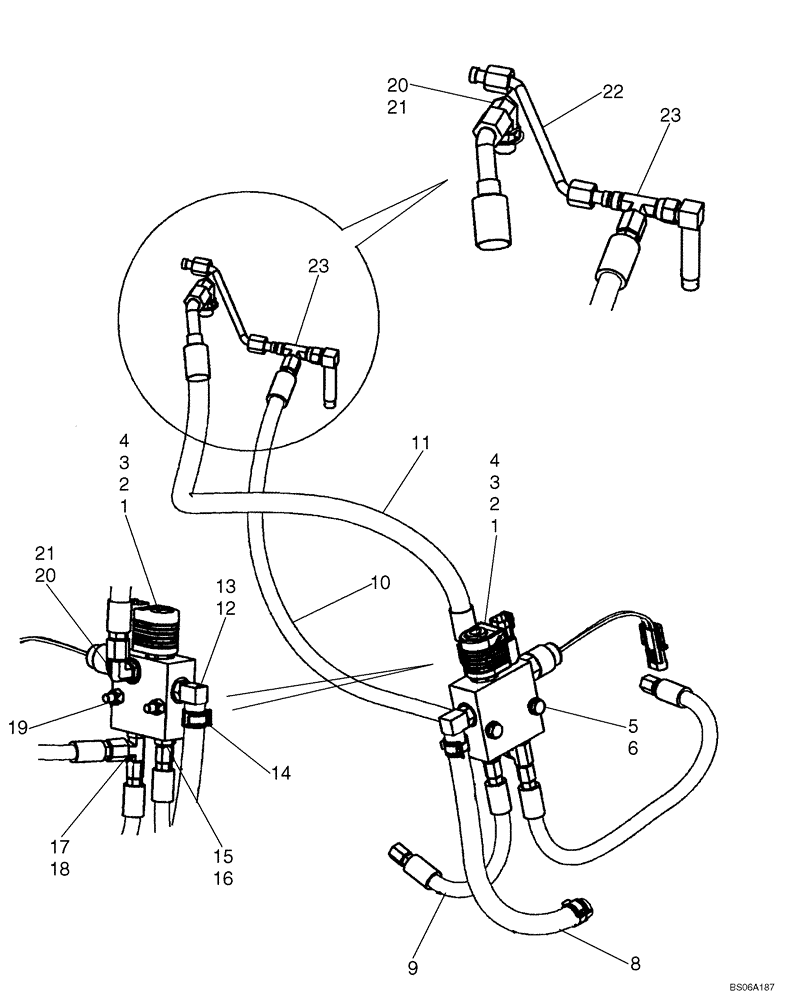

Запчасти Case IH 465 (07-02) - BRAKE SYSTEM - HYDRAULIC (WITH IN-LINE PUMP CONFIGURATION) (07) - BRAKES

REF

INSTRUCTION

MODELS WITH IN-LINE PUMP CONFIGURATION

1шт.

87638779

SERVICE KIT

Conversion Kit, Split Pump To In-Line Pump, Incl 7-12, 20-22

1шт.

1

87021047

BRAKE VALVE

Brake Valve; Incl. 2 - 4

1шт.

2

87458061

PRESSURE SWITCH

Brake Valve; Incl. O-Ring Which Is Not Serviced Separately

1шт.

3

87433496

COIL

1шт.

4

87424182

BRAKE VALVE

1шт.

5

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

6

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

87384128

HOSE ASSY.

1шт.

8

87384131

HOSE,12.7mm ID x 355mm L

1шт.

9

87384126

HOSE ASSY.

1шт.

10

87384129

HOSE ASSY.

1шт.

11

87384130

HOSE ASSY.

1шт.

12

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

15

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 16

3шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

Incl. 18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

9628098

NUT,M8 x 1.25, Cl 10

2шт.

20

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

23

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.
