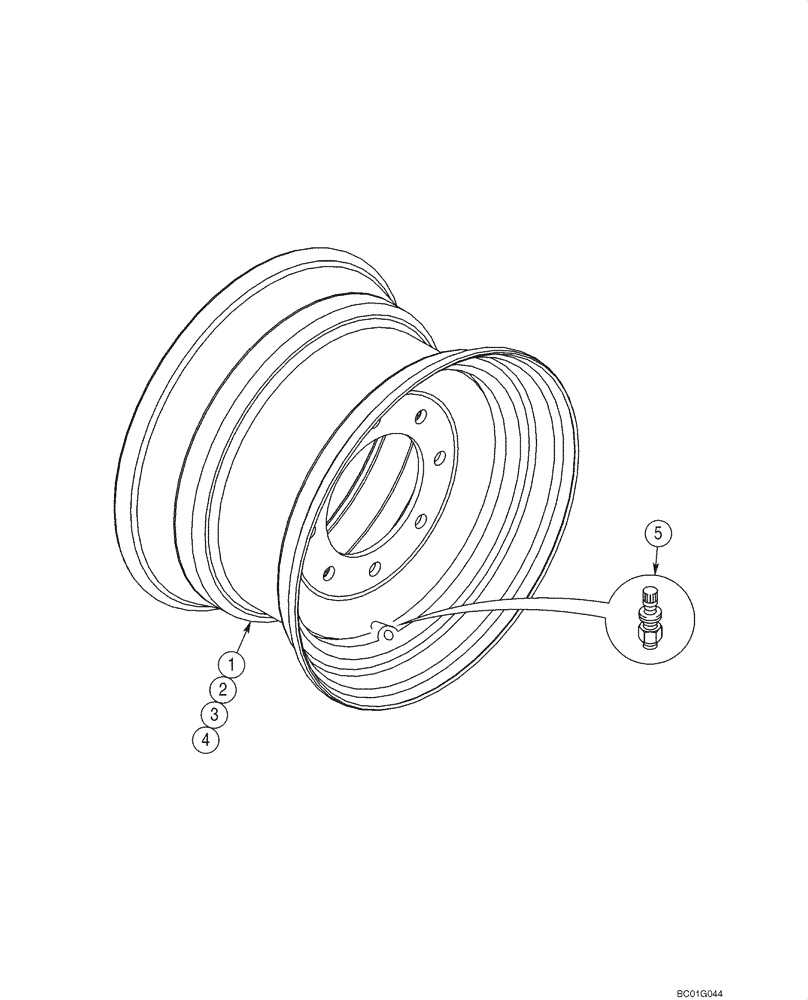

Запчасти Case IH 465 (06-36) - WHEELS (06) - POWER TRAIN

1

183300A3

RIM

WHEEL 16.5 x 9.75, Full Center; Used With 12 x 16.5 tire

4шт.

2

248048A2

RIM

WHEEL 16.5 x 12; Full Center; Used With 33/15.5 x 16.5 Inch Tire

4шт.

3

448569A1

WHEEL ASSY

16.5 x 9.75; Stamped Center; Used With 12 x 16.5 Inch tire

4шт.

4

409174A2

RIM

WHEEL 16.5 x 12; Stamped Center; Used With 33/15.5 x 16.5 Inch Tire

4шт.

5

372445A1

VALVE STEM

Used With 1, 2

1шт.

5

294579A1

VALVE STEM

Used With 2, 3, 4

1шт.

86512498

FLANGE NUT,M16 x 2, Cl 10

Used with Ref 1, 2; See Figure 06-34

32шт.

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

M16; 10; Used With Ref 3, 4; See Figure 06-34

32шт.
