Запчасти Case IH 465 (06-15) - TANDEM PUMP (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

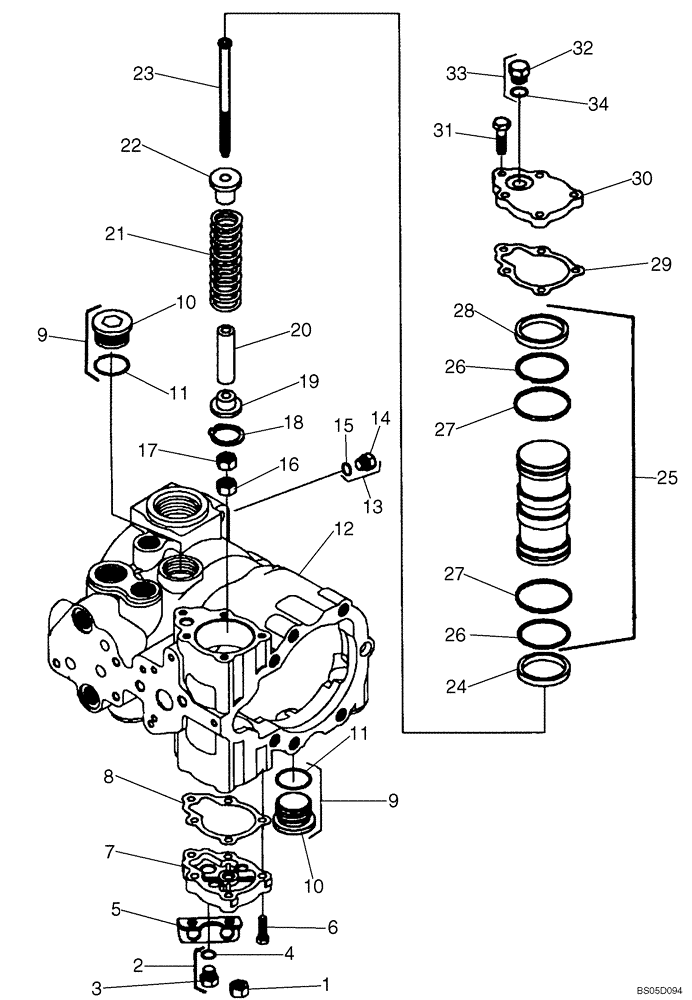

Схема запчастей Case IH 465 - (06-15) - TANDEM PUMP (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN
22
18
13
20
8
30
23
9
33
19
32
27
25
12
29
15
21
5
7
3
9
11
26
26
5
24
14
17
27
6
16
31
34
28
10
11
2
4
1

Артикул

Название

Примечание

Количество

87043511

PUMP

Tandem; Incl. Figures 06-13 - 06-15A

1шт.

87382196R

REMAN-HYD PUMP

Reman for New PN 87043511

1шт.

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87382196

PUMP

Tandem; Replaces 87043511; Incl. Figures 06-13 - 06-15A

1шт.

87382196R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

N13260

NUT,Inverted Lock

1шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Plug, 9/16-18

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

244899A1

SUPPORT

Lifting Bracket

1шт.

6

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

5шт.

7

H436065

COVER

Servo

1шт.

8

N14063

GASKET

Servo Cover

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref 10, 11

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, 1-1/16-12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Housing Assy

1шт.

13

9672438

PLUG,7/16" - 20 ORB

Incl. Ref 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, 7/16-20

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

324604A1

NUT,Lock

1шт.

17

425-116

NUT,3/8" - 24, Gr 5

1шт.

18

N13255

RING

Retaining

1шт.

19

N13241

GUIDE,1.292" OD

Spring

1шт.

20

N13242

SLEEVE

Servo Stop

1шт.

21

N13226

SPRING

Servo Spring

1шт.

22

N14666

GUIDE,1.292" OD

Spring

1шт.

23

370531A1

SCREW

1шт.

H673773

KIT

Incl. Ref 24, 26, 28

1шт.

24

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

25

H435772

PISTON

Servo; Incl. Ref 26 - 28

1шт.

26

N14668

RING, PISTON

2шт.

27

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

2шт.

28

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

29

N14063

GASKET

Servo Cover

1шт.

30

H436053

COVER

Servo

1шт.

31

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

5шт.

32

76349

PLUG,9/16" - 18 ORB

Incl. 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

Plug, 9/16-18

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 41
