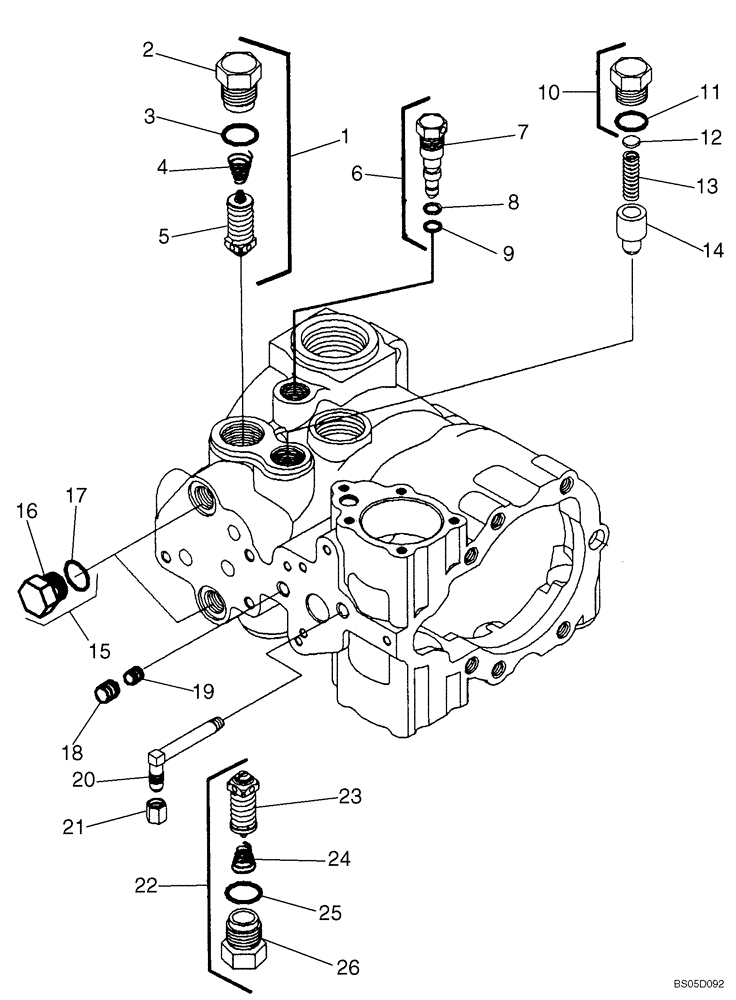

Запчасти Case IH 465 (06-13) - TANDEM PUMP (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

87043511

PUMP

Tandem; Incl. Figures 06-13 - 06-15A

1шт.

87382196R

REMAN-HYD PUMP

Reman for New PN 87043511

1шт.

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87382196

PUMP

Tandem; Replaces 87043511; Incl. Figures 06-13 - 06-15A

1шт.

87382196R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87382196C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

H436101

VALVE POPPET

Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

86993468

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

1шт.

6

87039612

BY-PASS VALVE

Incl. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Valve

1шт.

8

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

9

86993475

O-RING

1шт.

10

87039611

PLUG

CPRV Plug Assy; Incl. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

H407767

KIT

Shim

1шт.

13

244898A1

SPRING

Charge Relief Valve Spring

1шт.

14

V38371

VALVE

Charge Relief Valve

1шт.

15

76349

PLUG,9/16" - 18 ORB

Incl. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Plug

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

F23137

PLUG

1шт.

19

86993479

PIPE PLUG,1/16" - 27

1-16-27 Hex

1шт.

20

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

1шт.

21

86993467

CAP

37 Deg Flare

1шт.

22

H436101

VALVE POPPET

Incl. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

Spring

1шт.

24

86993468

SPRING

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

Plug

1шт.
