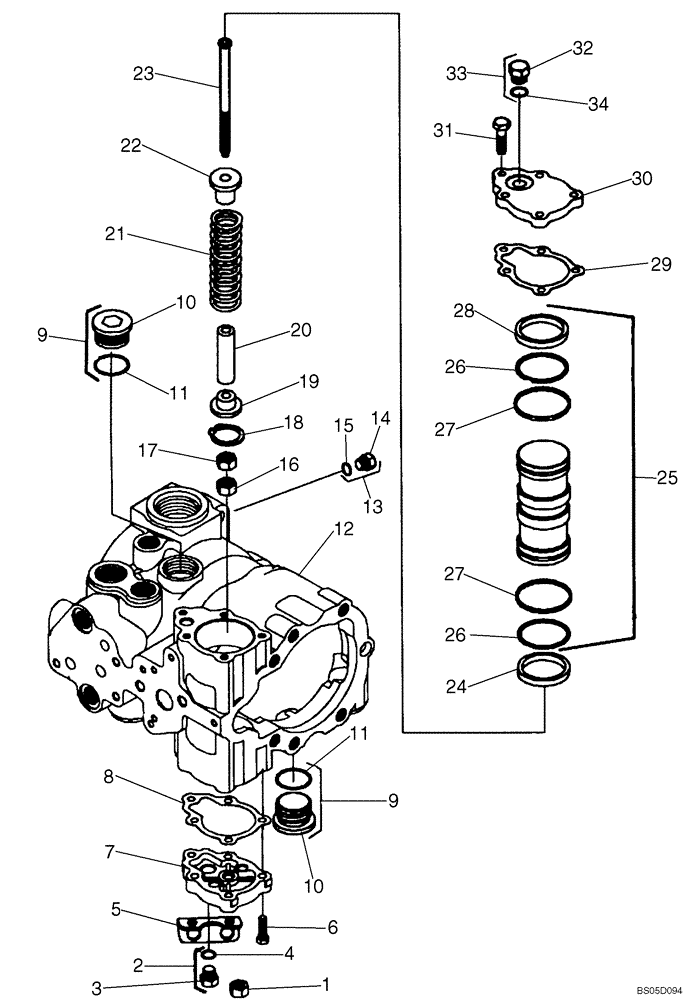

Запчасти Case IH 465 (06-11) - TANDEM PUMP (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87043510
PUMP
Tandem; Incl. Figures 06-09 - 06-12
1шт.
87382197R
Reman for New PN 87043510
REMAN-HYD PUMP
1шт.
87382197C
Return Number
CORE-HYDRAULIC PUMP
1шт.
87382197R
Remanufactured Hydraulic Pump;
REMAN-HYD PUMP
1шт.
87382197C
Return No,
CORE-HYDRAULIC PUMP
1шт.
1
N13260
NUT,Inverted Lock
1шт.
2
76349
PLUG,9/16" - 18 ORB
Incl. 3, 4
1шт.
3
NSS
NOT SOLD SEPARAT
Plug, 9/16-18
1шт.
4
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
5
244899A1
SUPPORT
Lifting Bracket
1шт.
6
H438321
BOLT,M6 x 1 x 20mm, Cl 10.9
5шт.
7
H436065
COVER
Servo
1шт.
8
N14063
GASKET
Servo Cover
1шт.
9
9841223
PLUG,1-1/16" - 12 ORB
Incl. Ref 10, 11
2шт.
10
NSS
NOT SOLD SEPARAT
Plug, 1-1/16-12
1шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
2шт.
12
NSS
NOT SOLD SEPARAT
Housing Assy
1шт.
13
9672438
PLUG,7/16" - 20 ORB
Incl. Ref 14, 15
1шт.
14
NSS
NOT SOLD SEPARAT
Plug, 7/16-20
1шт.
15
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
16
324604A1
NUT,Lock
1шт.
17
425-116
NUT,3/8" - 24, Gr 5
1шт.
18
N13255
RING
Retaining
1шт.
19
N13241
GUIDE,1.292" OD
Spring
1шт.
20
N13242
SLEEVE
Servo Stop
1шт.
21
N13226
SPRING
Servo
1шт.
22
N14666
GUIDE,1.292" OD
Spring
1шт.
23
370531A1
SCREW
1шт.
H673773
KIT
Incl. Ref 24, 26, 28
1шт.
24
238-5131
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
1шт.
25
H435772
PISTON
Servo; Incl. Ref 26 - 28
1шт.
26
N14668
RING, PISTON
2шт.
27
100536A1
BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk
2шт.
28
238-5131
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
1шт.
29
N14063
GASKET
Servo Cover
1шт.
30
H436053
COVER
Servo
1шт.
31
H438321
BOLT,M6 x 1 x 20mm, Cl 10.9
5шт.
32
76349
PLUG,9/16" - 18 ORB
Incl. 33, 34
1шт.
33
NSS
NOT SOLD SEPARAT
Plug, 9/16-18
1шт.
34
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 41
