Запчасти Case IH 465 (06-04E) - HYDROSTATICS - PUMP, MULTI-VALVE PLUMBING (465 WITH PILOT CONTROL) (06) - POWER TRAIN

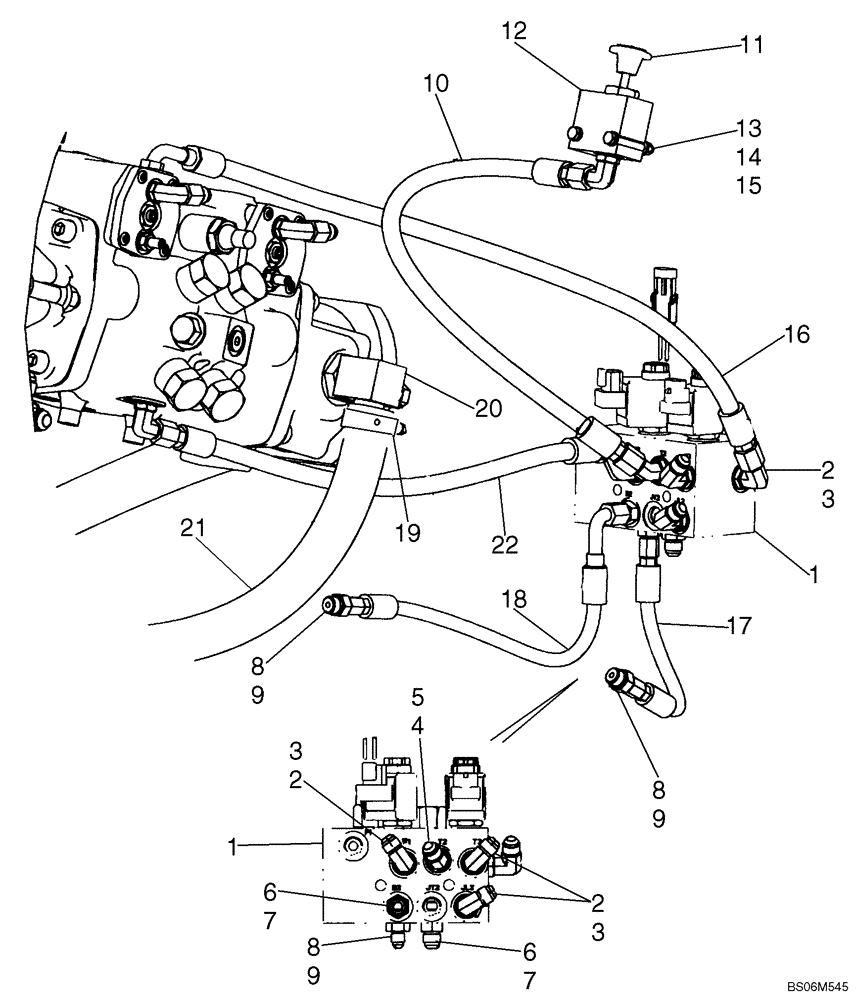

Схема запчастей Case IH 465 - (06-04E) - HYDROSTATICS - PUMP, MULTI-VALVE PLUMBING (465 WITH PILOT CONTROL) (06) - POWER TRAIN
10
9
22
21
16
8
1
11
8
6
6
1
2
5
7
15
7
12
19
3
13
9
14
17
2
3
18
4
2
9
20
3
8

Артикул

Название

Примечание

Количество

1

87546971

HYDRAULIC VALVE

Multi-Valve, Single Speed; See Figure 06-07A

1шт.

1

87546972

HYDRAULIC VALVE

Multi-Valve, Two Speed; See Figure 06-07B

1шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 3

4шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl. 4A

2шт.

4a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

87573371

ADAPTER

Incl. 5A, 5B

1шт.

5a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 7

2шт.

7

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 9

3шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

87547033

HOSE,9.65 mm ID x 720.00 mm

Dump Valve Drain

1шт.

11

87568435

DECAL

Boom Overide

1шт.

12

87546973

VALVE

Boom Overide; If Used

1шт.

12

87604076

VALVE, EXHAUST, OVER

Boom Overide; If Used

1шт.

13

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

87030561

NUT,M6 x 1, Cl 8

2шт.

16

87547040

HOSE

706 mm (27.8 in); DA Pressure

1шт.

17

87384126

HOSE ASSY.

Brake

1шт.

18

87547026

HOSE

465 mm (18.3 in) E-H Supply Or Brake

1шт.

19

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

20

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

90 Barb 1 Hose x 1-5/16-12 OR

1шт.

21

87547024

HOSE,25.4mm ID x 1553mm L, SAE 100R4

1553 mm (61 in); Charge Pump Supply

1шт.

22

87547035

HOSE,9.65 mm ID x 720.00 mm

Charge Pressure

1шт.

Выбрано товаров: 27
