Запчасти Case IH 465 (06-04A) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN

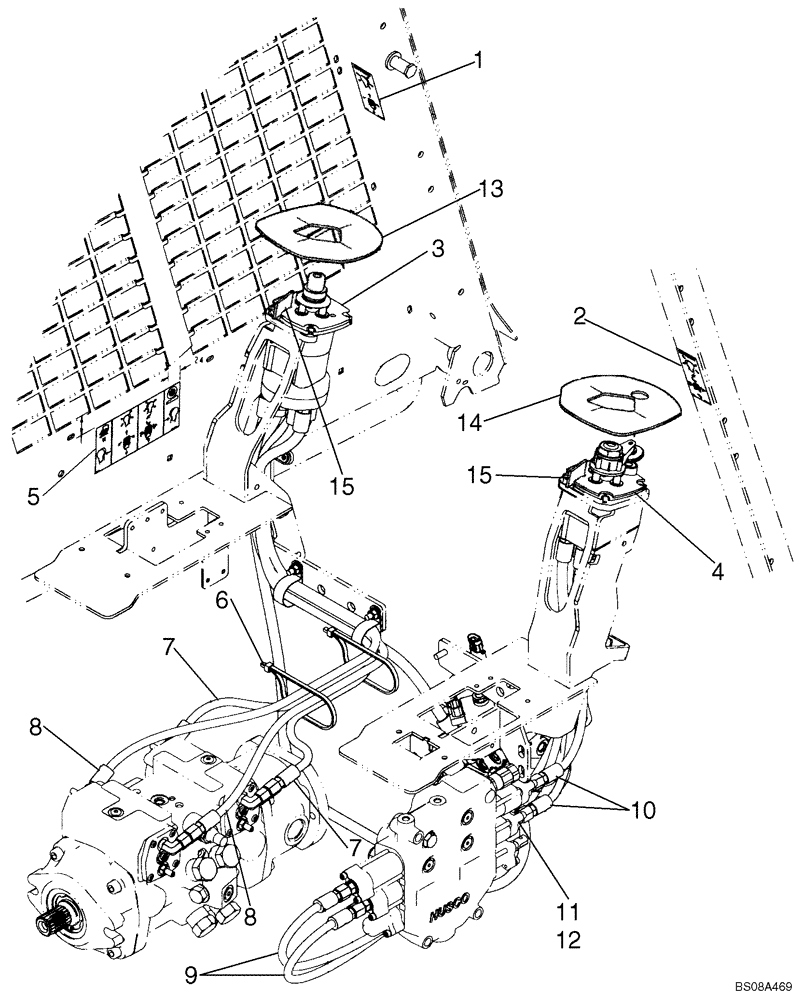

Схема запчастей Case IH 465 - (06-04A) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (MODELS WITH PILOT CONTROL) (06) - POWER TRAIN
8
1
5
13
6
15
12
3
7
2
8
11
9
14
15
10
4
7

Артикул

Название

Примечание

Количество

87575596

SERVICE KIT

Kit, ISO Pattern Control; Incl. 1 - 12

1шт.

1

87573277

DECAL

Decal, ISO Pattern LH

1шт.

2

87573278

DECAL

Decal, ISO Pattern RH

1шт.

3

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern LH

1шт.

4

87600623

VALVE

Joystick Valve, ISO Pattern RH

1шт.

5

87573274

DECAL

Decal, Control Identification - ISO

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

7

87564002

HOSE,6.35 mm ID x 3715.00 mm

2шт.

8

87547029

HOSE,6.35 mm ID x 63.00 mm

2шт.

9

87547030

HOSE,6.35 mm ID x 918.00 mm

2шт.

10

87547059

HOSE,6.35 mm ID x 770.00 mm

2шт.

11

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 12

1шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

87618653

FOAM INSULATION

Secondary Seal, LH

1шт.

14

87618657

FOAM INSULATION

Secondary Seal, RH

1шт.

15

87621155

SEAL

Seal

2шт.

Выбрано товаров: 16
