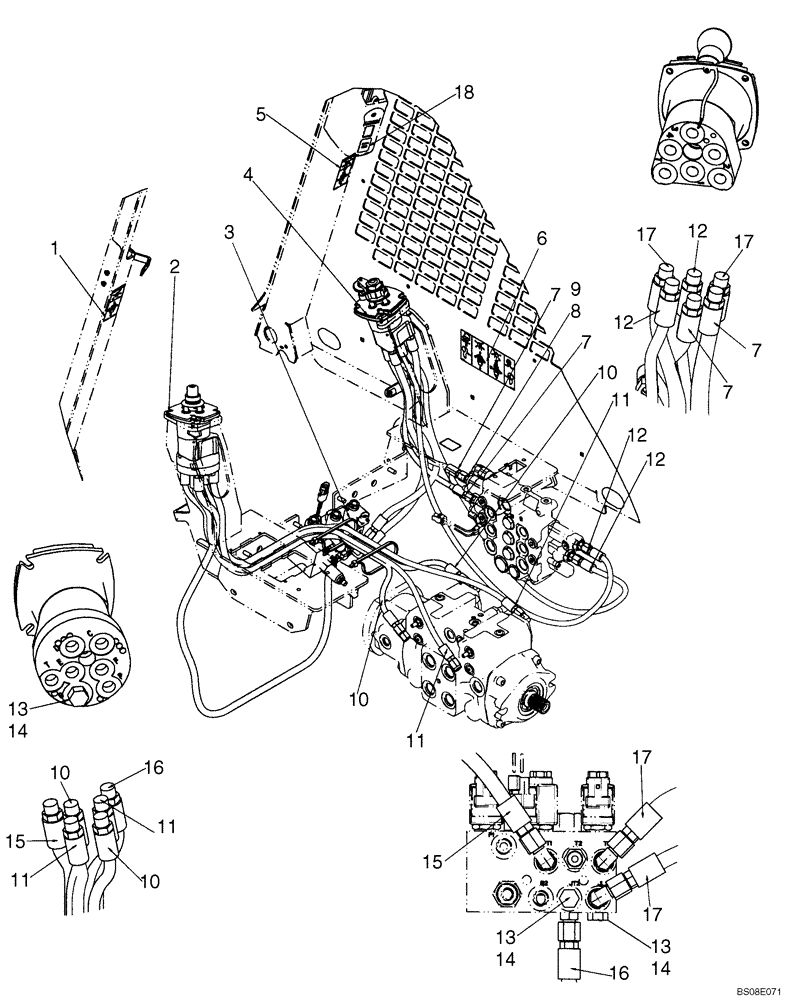

Запчасти Case IH 465 (06-02) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (PILOT CONTROL) (06) - POWER TRAIN

87703834

SERVICE KIT

ISO Pattern Pilot Control; Incl 1 - 17

1шт.

1

87715691

DECAL

ISO Pattern LH

1шт.

2

87600622

CONTROL BLOCK

Joystick, ISO Pattern LH; See Fig 06-05

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

4

87600623

VALVE

Joystick, ISO Pattern RH; See Fig 06-06

1шт.

5

87715692

DECAL

ISO Pattern RH

1шт.

6

87715688

DECAL

Control Identification ISO Pattern

1шт.

7

87547059

HOSE,6.35 mm ID x 770.00 mm

2шт.

8

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 9

1шт.

9

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

87564002

HOSE,6.35 mm ID x 3715.00 mm

2шт.

11

87684259

HOSE

1110mm (43 11/16 in.)

2шт.

12

87547030

HOSE,6.35 mm ID x 918.00 mm

2шт.

13

76349

PLUG,9/16" - 18 ORB

Incl. 14

3шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

15

87684257

HOSE

Joystick Supply Or Drain, 720mm (28 11/32 in.)

1шт.

16

87564004

HOSE,9.65 mm ID x 2865.00 mm

Joystick Supply

1шт.

17

87547036

HOSE,9.65 mm ID x 720.00 mm

Joystick Supply Or Drain

2шт.

18

87746891

DECAL

ISO Pattern

1шт.
