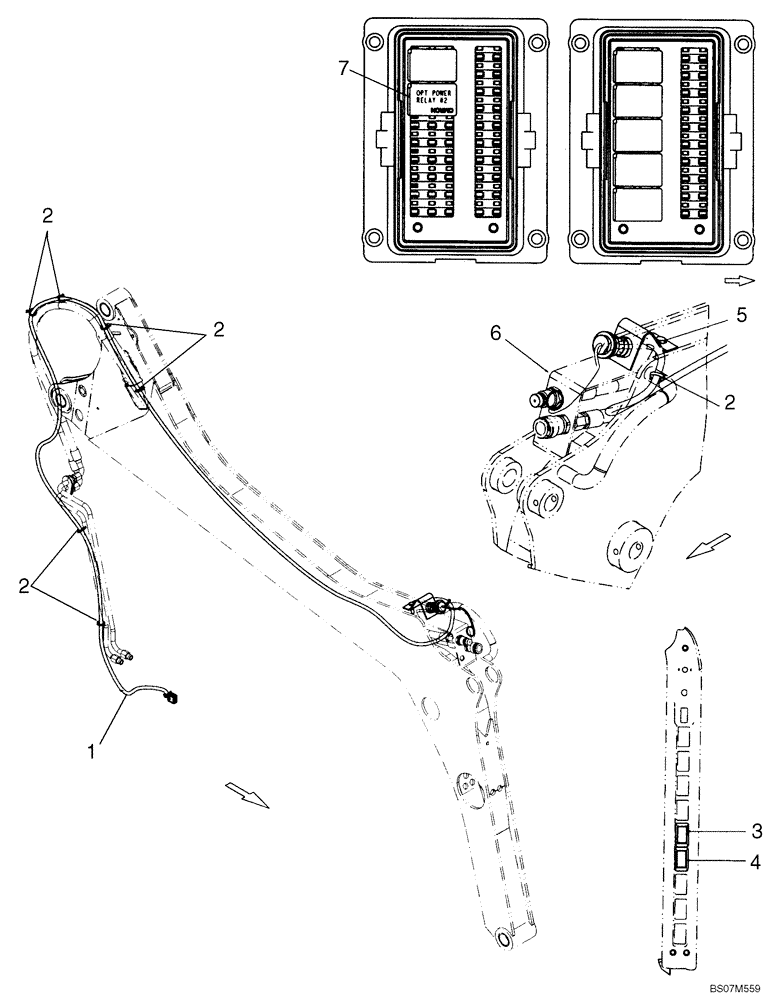

Запчасти Case IH 465 (04-25) - ELECTRIC - FRONT AUXILIARY (04) - ELECTRICAL SYSTEMS

87640048

SERVICE KIT

Auxiliary Front Electric; Incl 1 - 7

1шт.

1

87441574

WIRE HARNESS

Front Auxiliary; Incl. 1A & 1B

1шт.

1a

490691C1

LOCK WASHER,#18 Shell

1шт.

1b

490692C1

LOCK NUT,#18 Shell

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

7шт.

3

87634134

SWITCH

Rocker, Auxiliary Electric I/O

1шт.

4

87634135

SWITCH

Rocker, Auxiliary Electric F/R

1шт.

5

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

6

87458118

BRACKET

Auxiliary Electric Mount

1шт.

7

87655334

RELAY,12V, 35A, Micro

1шт.
