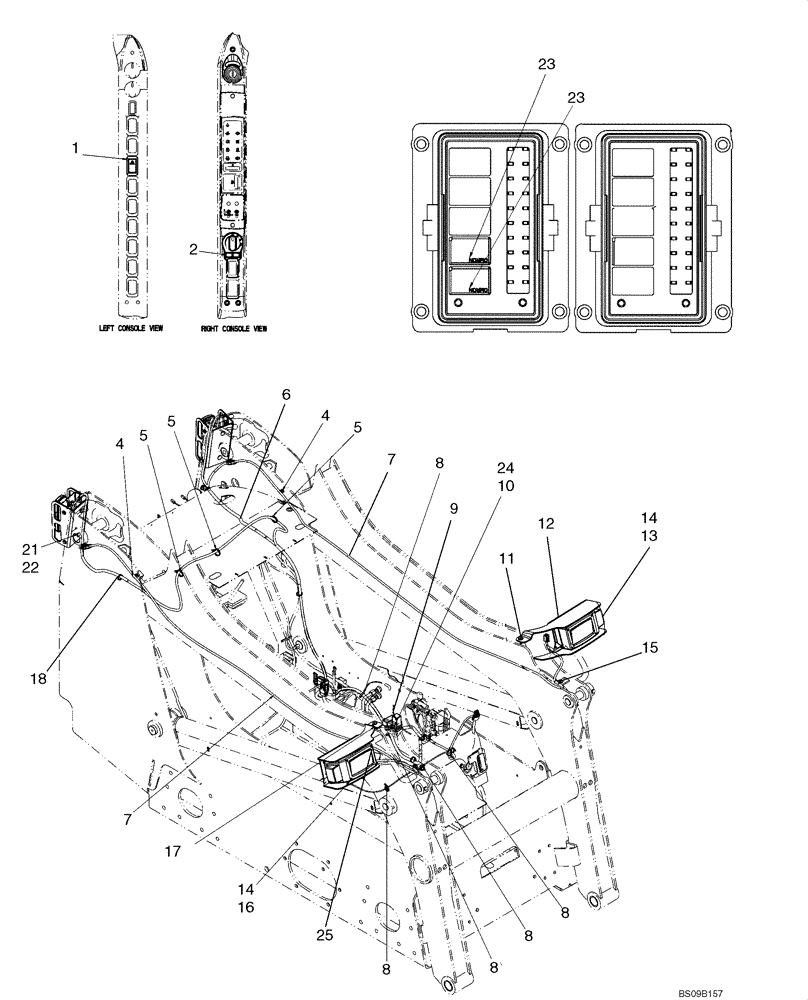

Запчасти Case IH 465 (04-18) - ELECTRICAL - ROAD LIGHTS (04) - ELECTRICAL SYSTEMS

87676263

SERVICE KIT

Road Lights (NA); Incl 1 - 23

1шт.

1

87634133

SWITCH

Rocker, Hazard Lights

1шт.

2

86604657

INDICATOR, TURN SIGN

1шт.

3

REF

INSTRUCTION

Rear Lights; See Fig 04-23

2шт.

4

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

5

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

6

87673078

HARNESS

Boom, On Road

1шт.

7

87673076

HARNESS

Boom Jumper, On Road

2шт.

8

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

11шт.

9

83982664

RELAY

Turn Signal

1шт.

10

9821783

FLASHER UNIT

1шт.

11

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

12

87721975

BRACKET

Light, LH; If Used

1шт.

12

87754969

BRACKET

Light, LH; Power Tan

1шт.

13

85821385

LH HEADLAMP,12V

See Fig 04-22

1шт.

14

43435

FLANGE NUT,Hex, M10 x 1.5

If Used

4шт.

15

86639003

CLAMP,9.5mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

16

85821384

RH HEADLAMP,T4W, 12V, 4W

See Fig 04-21

1шт.

17

87721976

BRACKET

Light, RH; If Used

1шт.

17

87754970

BRACKET

Light, RH; Power Tan

1шт.

18

87668732

HARNESS

NA Road Lights; If Used

1шт.

18

87749673

HARNESS

NA Road Lights

1шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

If Used

8шт.

20

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

If Used

8шт.

21

87030549

NUT,M10 x 1.5, Cl 10

If Used

4шт.

22

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

If Used

4шт.

23

87655334

RELAY,12V, 35A, Micro

1-2шт.

24

86500939

SELF-TAP SCREW,HWH, #10 - 16 x 3/8"

2шт.

25

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

Screw, Flg M10 x 25

2шт.
