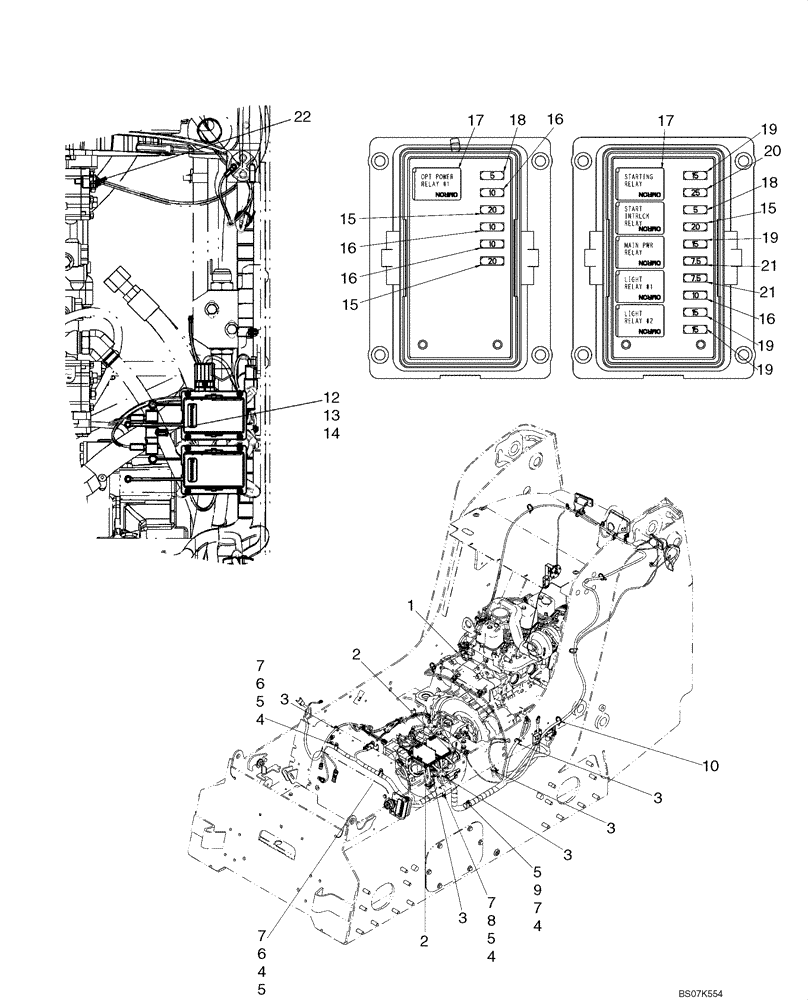

Запчасти Case IH 465 (04-09A) - ELECTRICAL - CHASSIS HARNESS (04) - ELECTRICAL SYSTEMS

1

87715730

HARNESS

Chassis; Incl 1A

1шт.

1

87747920

HARNESS

Replaces Harness 87715730; See Fig 04-09C

1шт.

1a

L71879

DIODE ELEMENT,400V, 3A

3A Diode Connector; Not Illustrated

1шт.

2

87020181

SCREW,Phillips Drive, Pan HD, #10 - 32 x 7/8"

8шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

11-15шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2-6шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

SQUARE M8-1.25 CLASS 8 ZND

4шт.

6

86624181

WASHER,M6

2шт.

7

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

8

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

8

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

9

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

If Used

1шт.

9

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

10

87668737

CABLE TIE,203.2mm L, Nylon, Black

6шт.

11

86639008

CLAMP,6.3mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

12

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

13

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

14

87016450

SCREW,Pan, #10 - 32 x 5/8"

1шт.

15

121414A1

FUSE,20A, Mini, Yellow

3шт.

16

121412A1

FUSE,10A, Mini, Red

4шт.

17

87655334

RELAY,12V, 35A, Micro

Start Relay, Start Interlock Relay, Main Power Relay, Light Relay 1, Light Relay 2, Optional Power Relay

6шт.

18

121410A1

FUSE,5A, Mini, Tan

2шт.

19

121413A1

FUSE,15A, Mini, Blue

4шт.

20

121415A1

FUSE,25A, Mini, Clear

1шт.

21

121411A1

FUSE,7.5A, Mini, Brown

2шт.

22

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Oil, Unit

1шт.

23

86705351

RESISTOR

Not Shown

1шт.
