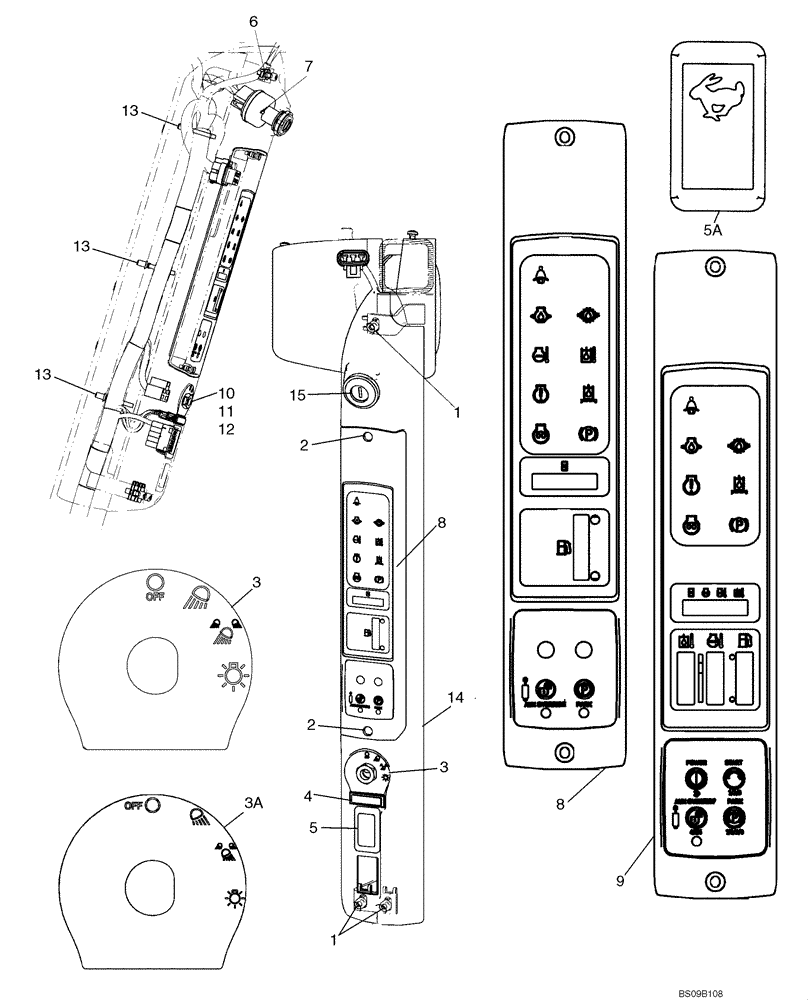

Запчасти Case IH 465 (04-07) - CAB ELECTRICAL - RIGHT HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

280272

HEX SOC SCREW,1/4" - 20 x 3/4"

3шт.

2

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

2шт.

3

87677739

DECAL

Decal, Light Switch; If Used; See Fig 09-60A

1шт.

3a

87492705

DECAL

Decal, Light Switch; See Fig 09-60A

1шт.

4

86627432

PLASTIC PLUG

1шт.

5

126844A1

PLUG,1.427” x .62” , Plastic

1шт.

5a

87634136

SWITCH

High Speed Indicator; If used

1шт.

6

86521425

SPRING NUT,Tinn, U, 1/4"-20

3шт.

7

282775A1

IGNITION SWITCH

Incl (2) Keys

1шт.

7a

87735655

DECAL

Decal, Key Switch; Not Illustrated; If Used; See Fig 09-60

1шт.

7a

87629079

DECAL

Decal, Key Switch; Not Illustrated; See Fig 09-60

1шт.

8

87638864

INSTRUMENT PANEL

Instrument Panel, Case Standard

1шт.

8

87638864R

Remanufactured Instrument Panel

REMAN ELECT CONTROL

1шт.

8

87638864C

Return Number

CORE-ELECTRONIC CONT

1шт.

9

84128950

CLUSTER

Instrument Panel, Case Deluxe; Replaces 8749421, 87638865, 87476813, 87488255; If Used

1шт.

Before Serial Number NAM420668 NA

1шт.

9

84128950R

Remanufactured Instrument Cluster

REMAN-INSTR CLUSTER

1шт.

9

84128950C

Return Number

CORE-CLUSTER, INSTR

1шт.

9

84251468

MILES COUNTER DEVICE

After Serial Number NAM420669

1шт.

9

84251468R

465 TIER 3, ASN N7M452623, After Serial Number NAM420669 (1/08-3/11)

REMAN-INSTR CLUSTER

1шт.

9

84251468C

Return Number

CORE-CLUSTER, INSTR

1шт.

10

86729670

KNOB

1шт.

11

86729669

SWITCH

Light Switch

1шт.

12

87310592

JAM NUT,7/16" - 28, Gr 5

1шт.

13

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

14

87665327

CONSOLE

Console, RH; If Used

1шт.

14

84128478

CONSOLE

Console, RH

1шт.

15

87746892

DECAL

Key Blank; If Used

1шт.
