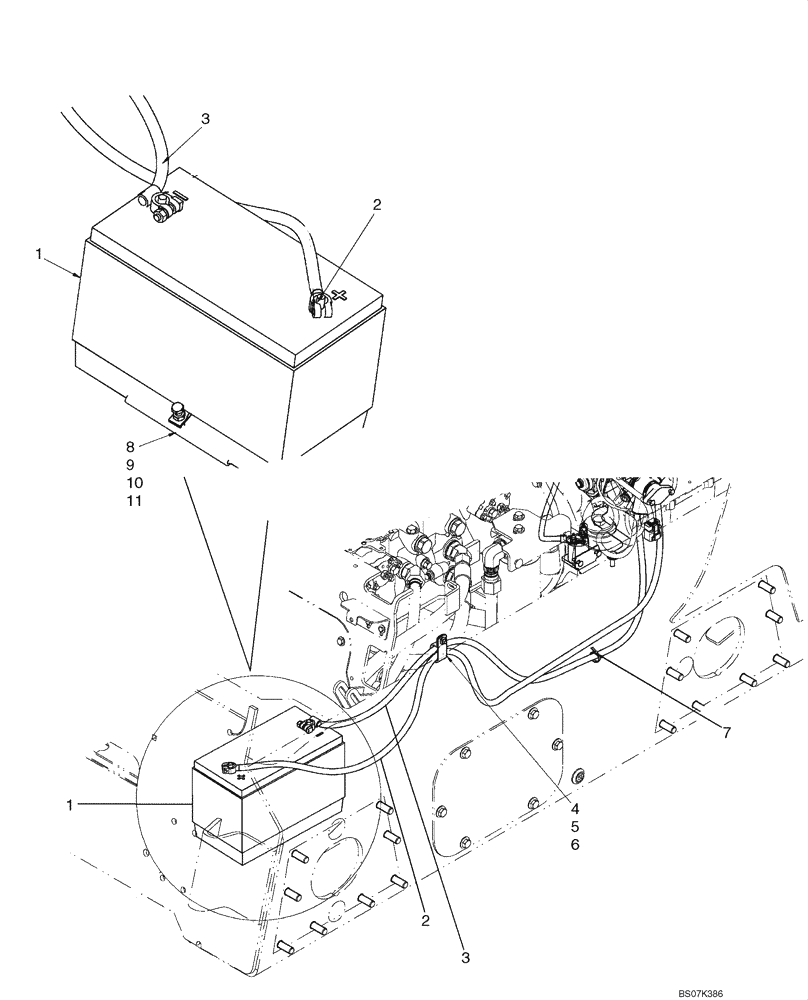

Запчасти Case IH 465 (04-04) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

87665227

WET BATTERY

1шт.

2

87033046

CABLE

Battery, Positive, 2000mm (78 3/4 in.)

1шт.

3

338030A1

CABLE ASSY.

Battery, Negative, 1524mm (60 in.)

1шт.

4

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

8

43362

NUT,M8 x 1.25, Cl 10

1шт.

9

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

10

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

1шт.

11

87450956

ANGLE

Battery Hold Down

1шт.
