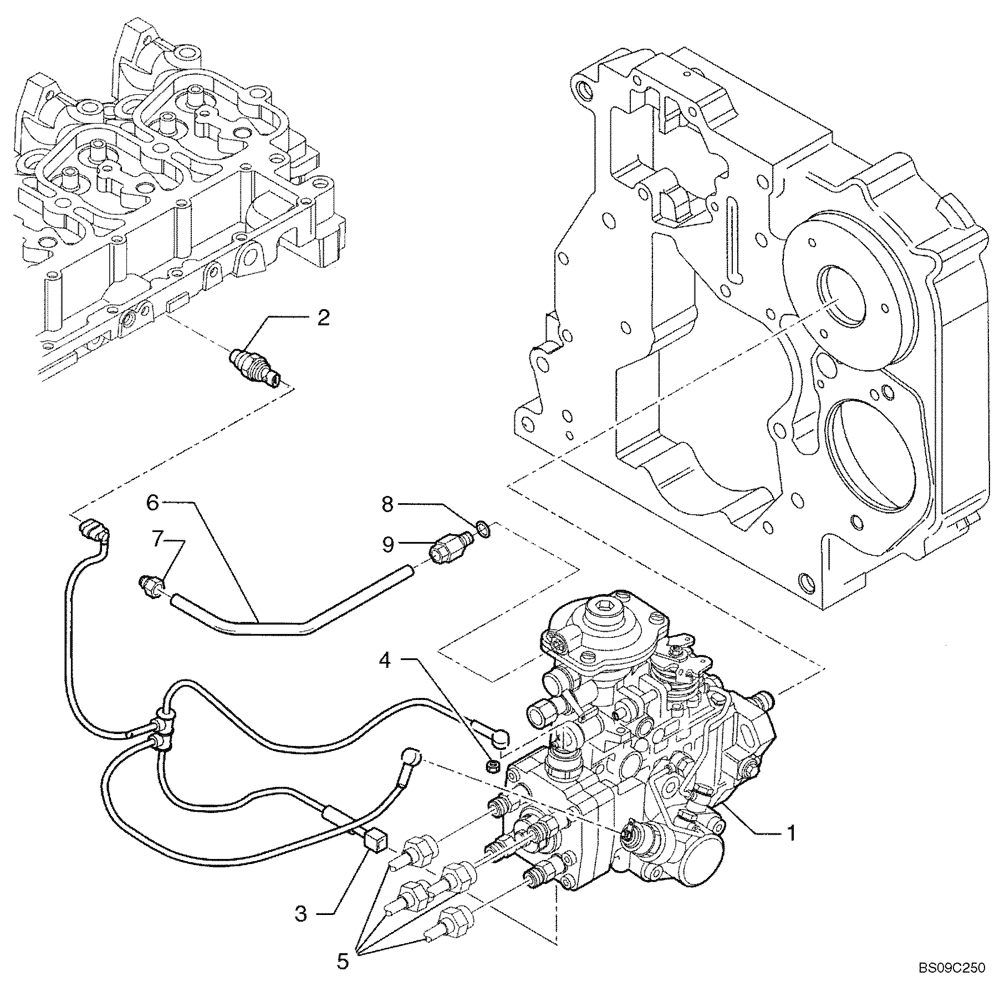

Запчасти Case IH 465 (03-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

2856334

FUEL INJECTION PUMP

Incl 2852741

1шт.

1

2856334R

465 SSL Series 3 ASN N7M452623, Use w/ Eng. P/N 84149878 Tier 3

REMAN-INJECTION PUMP

1шт.

1

2856334C

Return Number

CORE-INJECTION PUMP

1шт.

2852741

SOLENOID

Fuel Shut Off

1шт.

2

2856350

SENSOR

Water

1шт.

3

2852088

WIRE HARNESS

1шт.

4

2852089

NUT,M5

2шт.

5

REF

INSTRUCTION

TUBE; See Figure 03-07 for Tube Kit

1шт.

6

2852059

TUBE

1шт.

7

4896770

TUBE NUT,M10 x 1

1шт.

8

2852057

SEALING WASHER,M8 x 12 x 1 Thk

SEAL WASHER

1шт.

9

4893518

TUBE,M8 x 1 x 29.5 L

1шт.
