Запчасти Case IH 465 (02-26) - MANIFOLD - EXHAUST (02) - ENGINE

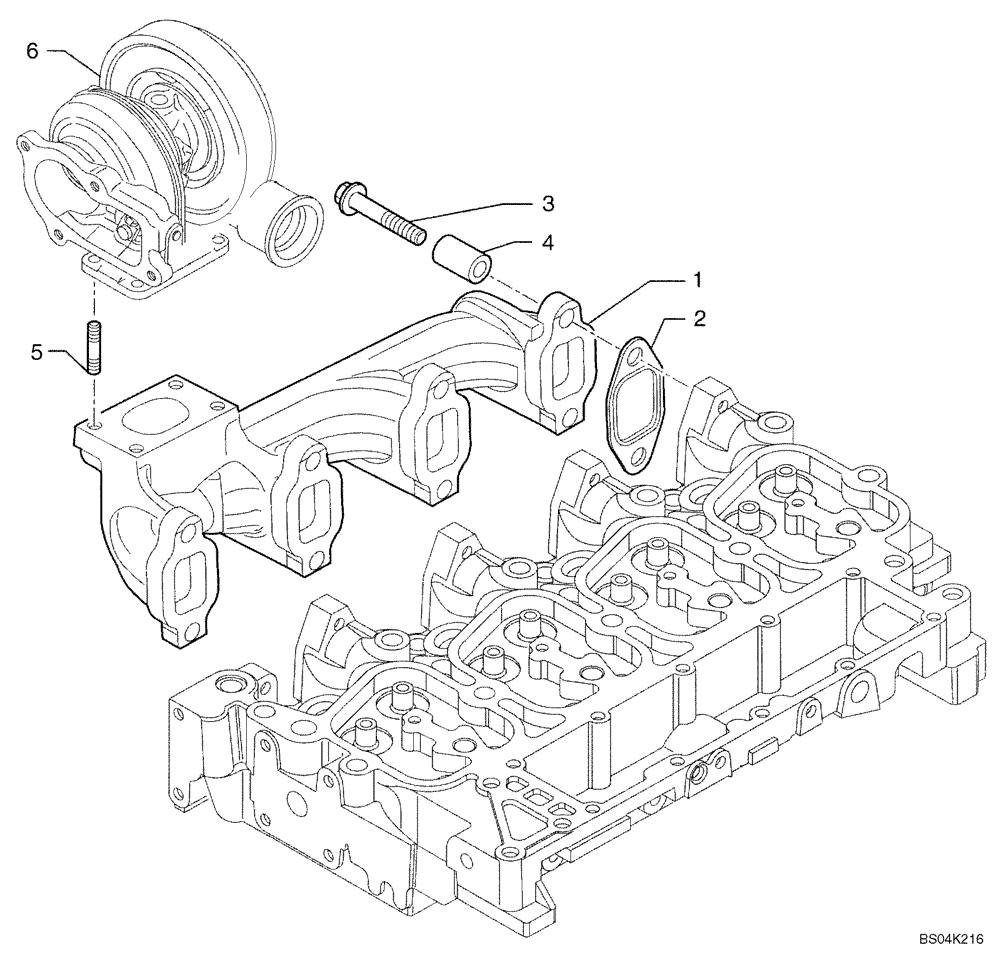

Схема запчастей Case IH 465 - (02-26) - MANIFOLD - EXHAUST (02) - ENGINE
1
5
6
2
3
4

Артикул

Название

Примечание

Количество

1

2855983

EXHAUST MANIFOLD

1шт.

2

2830445

MANIFOLD GASKET

4шт.

3

2852834

SCREW,Hex Flg, M10 x 1.5 x 40mm

Flange, M10 x 40; Models Without Turbocharged Engine

8шт.

3

2852744

SCREW,Flng, M10 x 1.5 x 65mm

Models with Turbocharged Engine

8шт.

4

4895336

SPACER

Models With Turbocharged Engine

8шт.

5

4899859

STUD,M8 x 37

4шт.

6

REF

INSTRUCTION

TURBOCHARGER; See Figure 02-40

1шт.

Выбрано товаров: 7
